Titan Pump System

  • Space-Saving Design: The compact octagonal sump chamber is designed to fit efficiently into tight spaces, making it ideal for a variety of installations.
  • Comprehensive System: Includes class-leading pumps, a lock & seal lid, high water level alarm, and all necessary internal pipework, providing a complete and reliable solution for water management.
  • Easy Maintenance: Features a quick-release shut-off valve, allowing for fast and hassle-free pump servicing, ensuring long-term system performance.

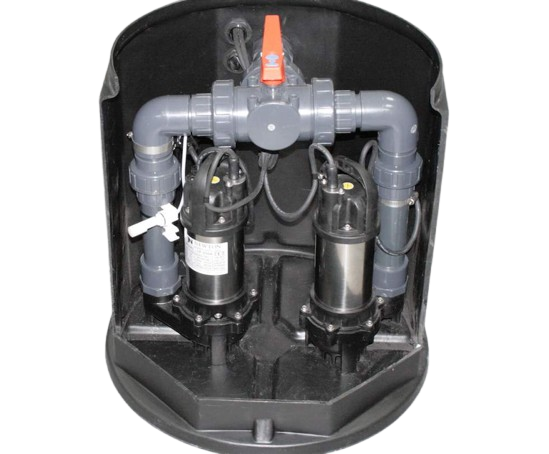

Compact pumping system incorporating an octagonal sump chamber, class-leading pumps, a lock & seal lid and frame, a Newton High Water Level Alarm, internal pipework, one-way valves, and a quick-release shut-off valve for quick release of the pumps for servicing.

The Newton Titan is ideally suited for receiving connections from rainwater gullies and surface slot drainage entering the sump through optional 110 mm wall flanges for connection to incoming pipework.

  • Key Benefits
  • Typical Applications
  • Pump Configurations & Product Codes
  • Key Benefits

    Key Benefits

    • Compatible with Newton CP pumps
    • Compact size allows installation to locations that are too tight for larger pumping systems
    • Supplied with sealed and locked recessed lid. High-end finish lids and frames are available as cost options (see the data sheet)
    • Flat areas to side of chamber ready for wall flanges to receive incoming 110mm drainage pipes. Wall flanges are available as cost options (see the data sheet)
    • Large foot to base of chamber to prevent floatation

    Typical Applications

    Typical Applications

    The Titan is specifically designed for the pumping of water from:

    • Basements and cellars
    • Light-wells
    • Surface water pumping receiving water from gullies and surface slot drainage

    Pump Configurations & Product Codes

    Pump Configurations & Product Codes

    Sump Chambers & Pumps

    If you only need a chamber or want to order your pumps separately, choose from our Titan chambers, and our built Titan pumping systems.

    For more information on the individual pump units that can be ordered with the Titan chamber, call our Technical Team on 01732 360 095, or email tech@newtonwaterproofing.co.uk.

    Titan Sump Chamber
    Purchase Code
    Chamber only T2C
    Chamber plus lid & frame T2C&L



    Built Pumping Systems
    Pump(s) Number of pumps Purchase Code
    CP150 1 T1
    CP250 1 T2
    CP250 1 T3
    CP400 2 T4
