  • Advanced Pump Monitoring: Utilises Machine Learning Technology to continuously monitor pump performance, detecting issues like clogging or impeller damage early to prevent failures.
  • Comprehensive Protection: Features self-diagnostic programs that test pumps weekly, ensuring reliable operation and preventing clogging or seizure.
  • Versatile Dual-Pump Operation: Supports two 230V AC pumps with separate versions for foul water or surface and groundwater, providing tailored solutions for different pumping needs.

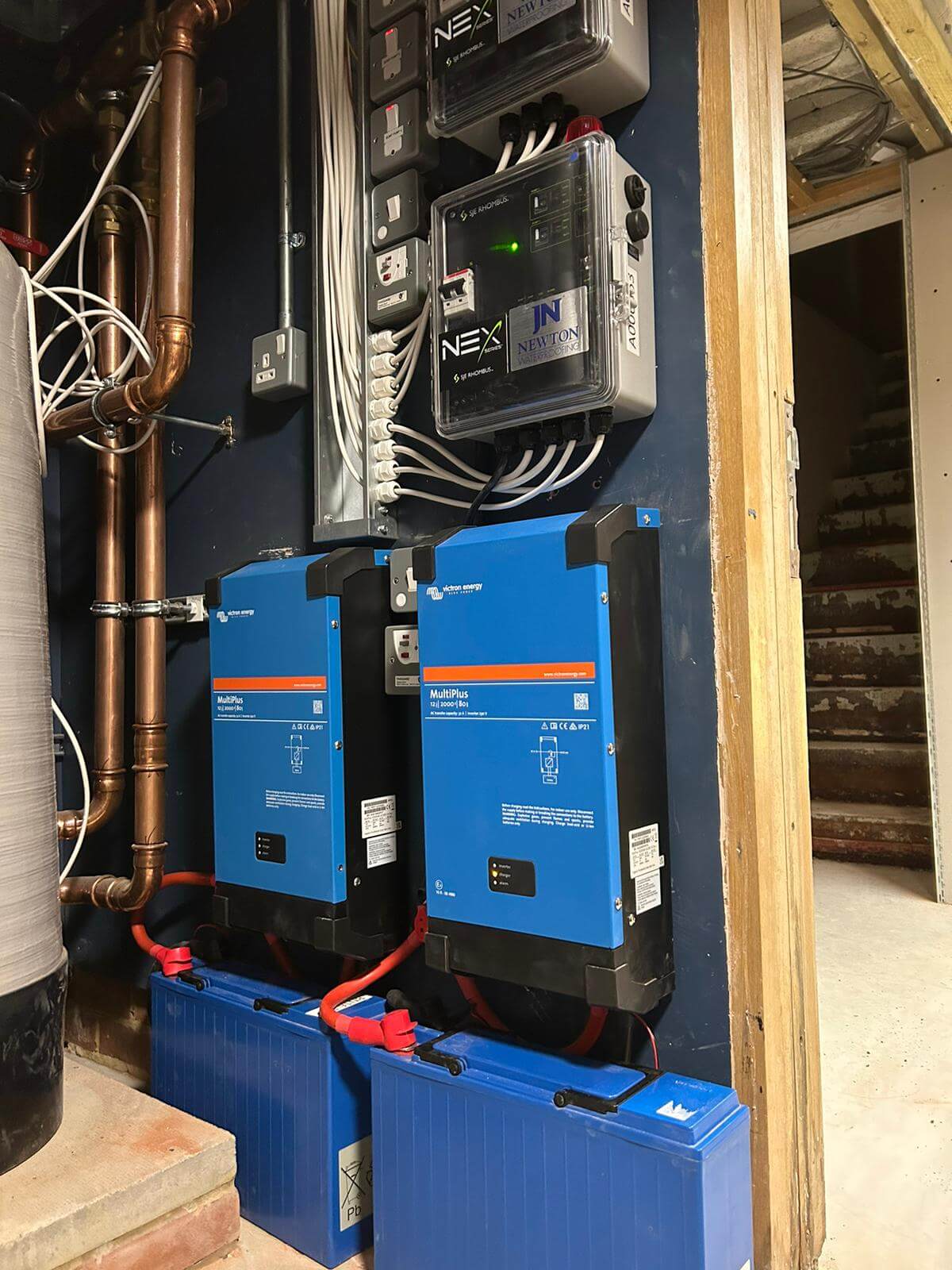

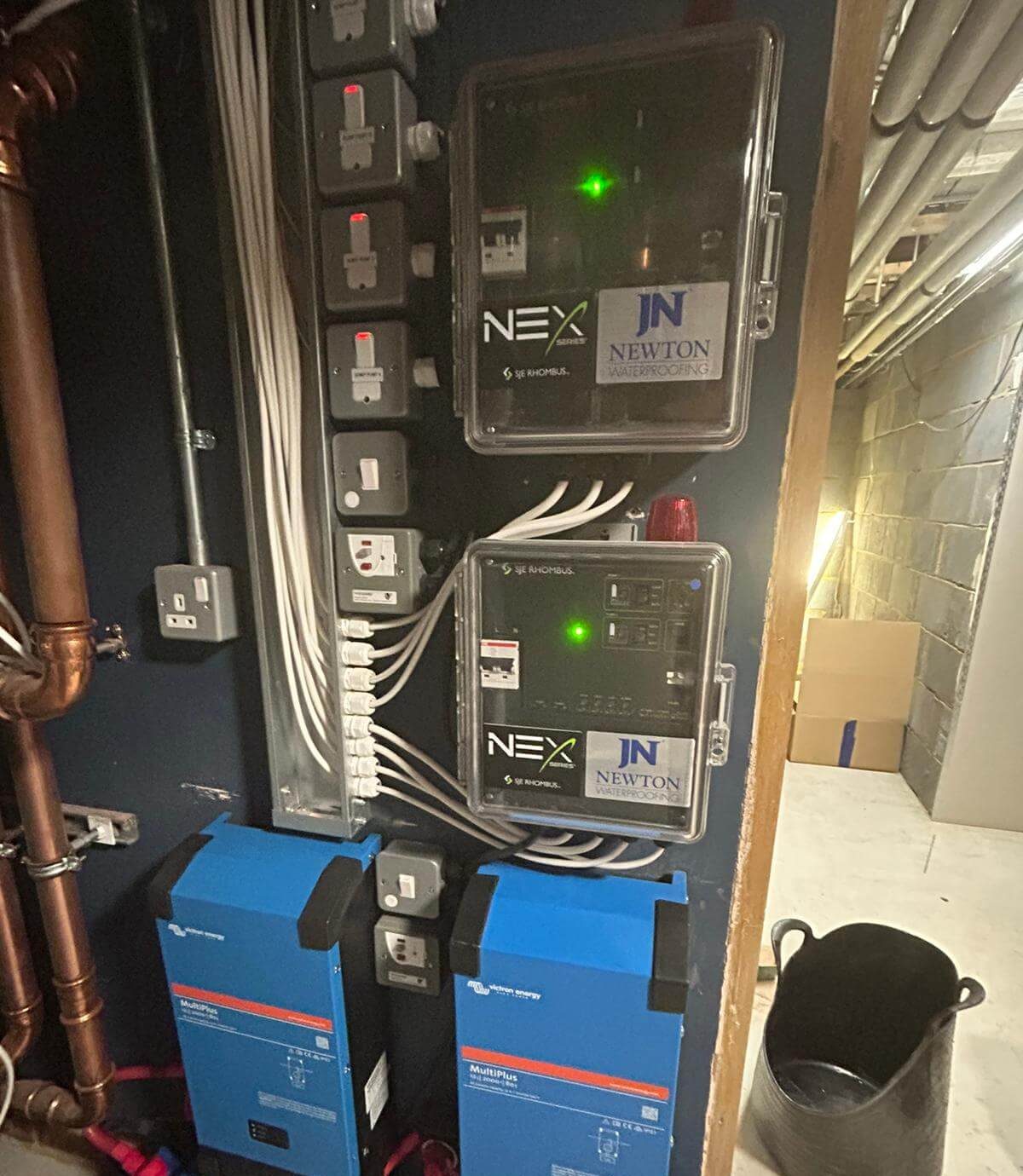

The Newton NEX is a sophisticated duplex pump control panel with many unique features, that includes advanced pump operation, protection, diagnostic and telemetry features. The panel is available in two versions, one suitable for pumping foul water and a version designed to be used for pumping surface and groundwater that features separate mains and inverter power supplies:

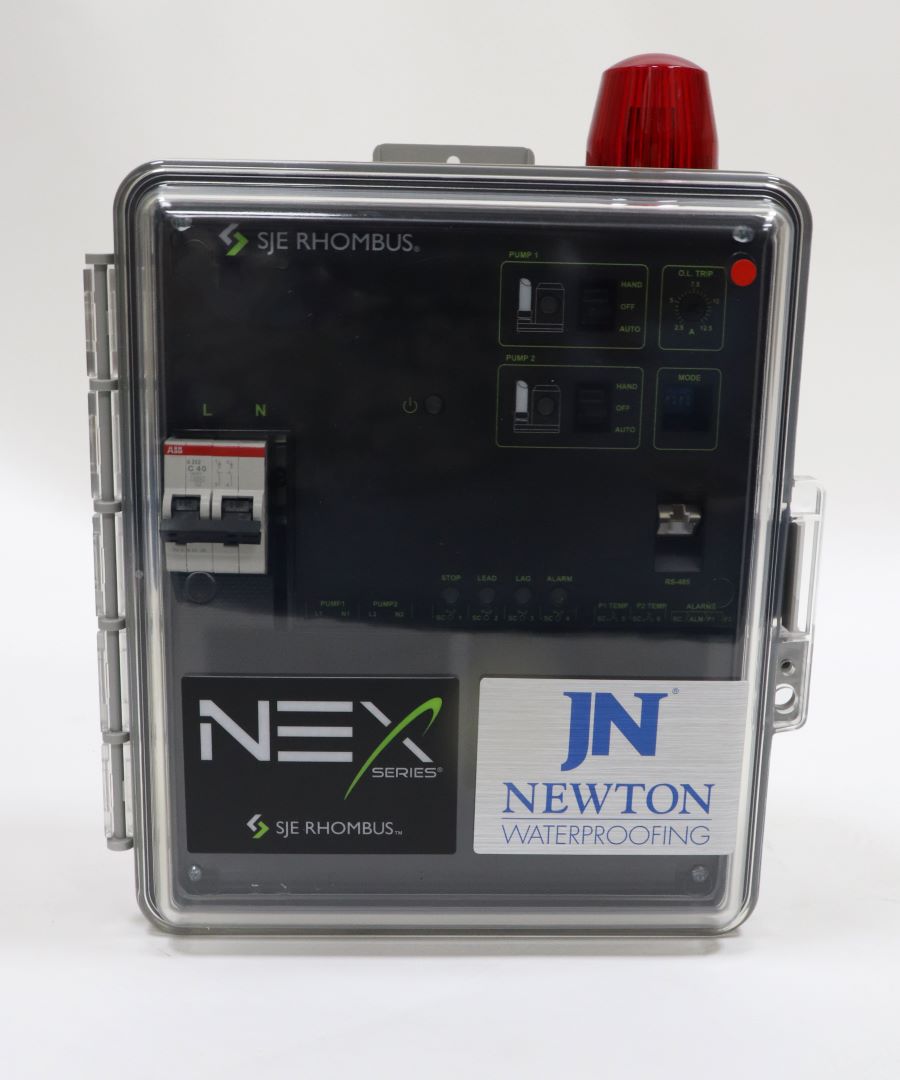

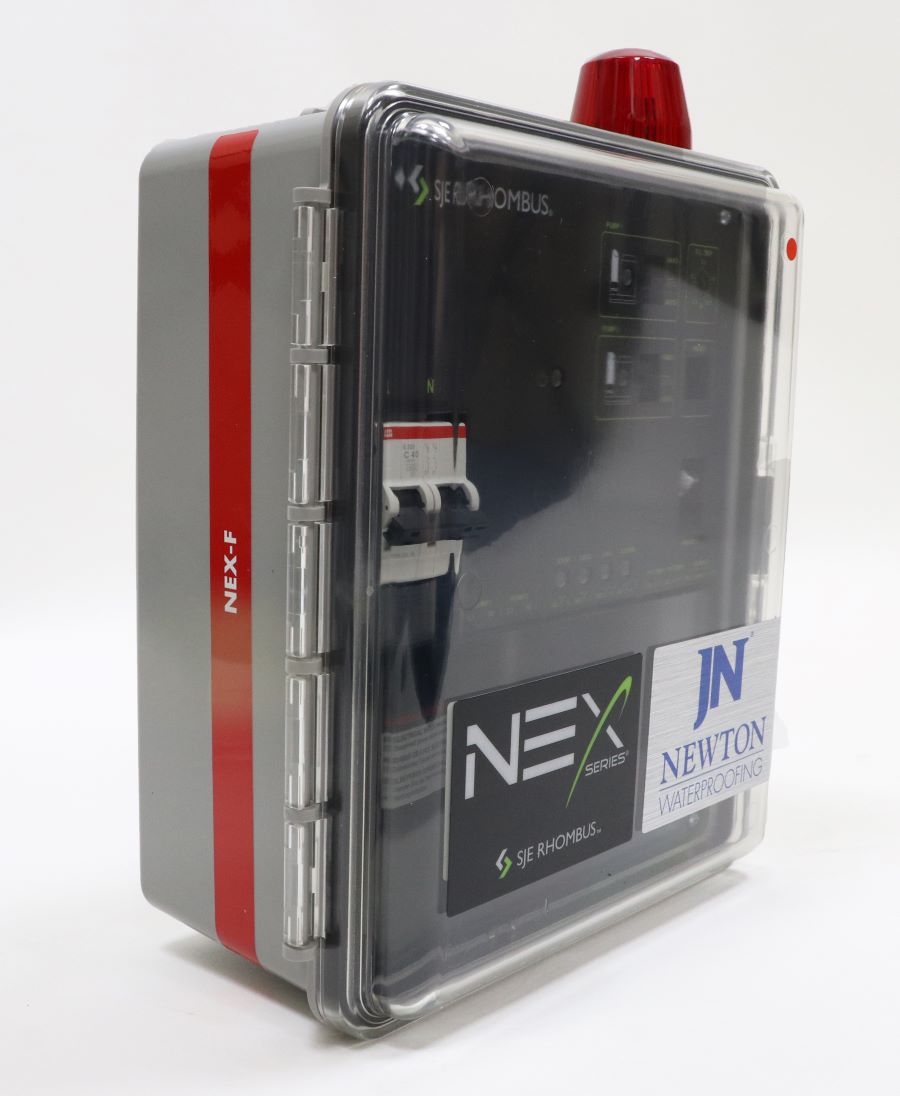

  • NEX-F for foul pumping

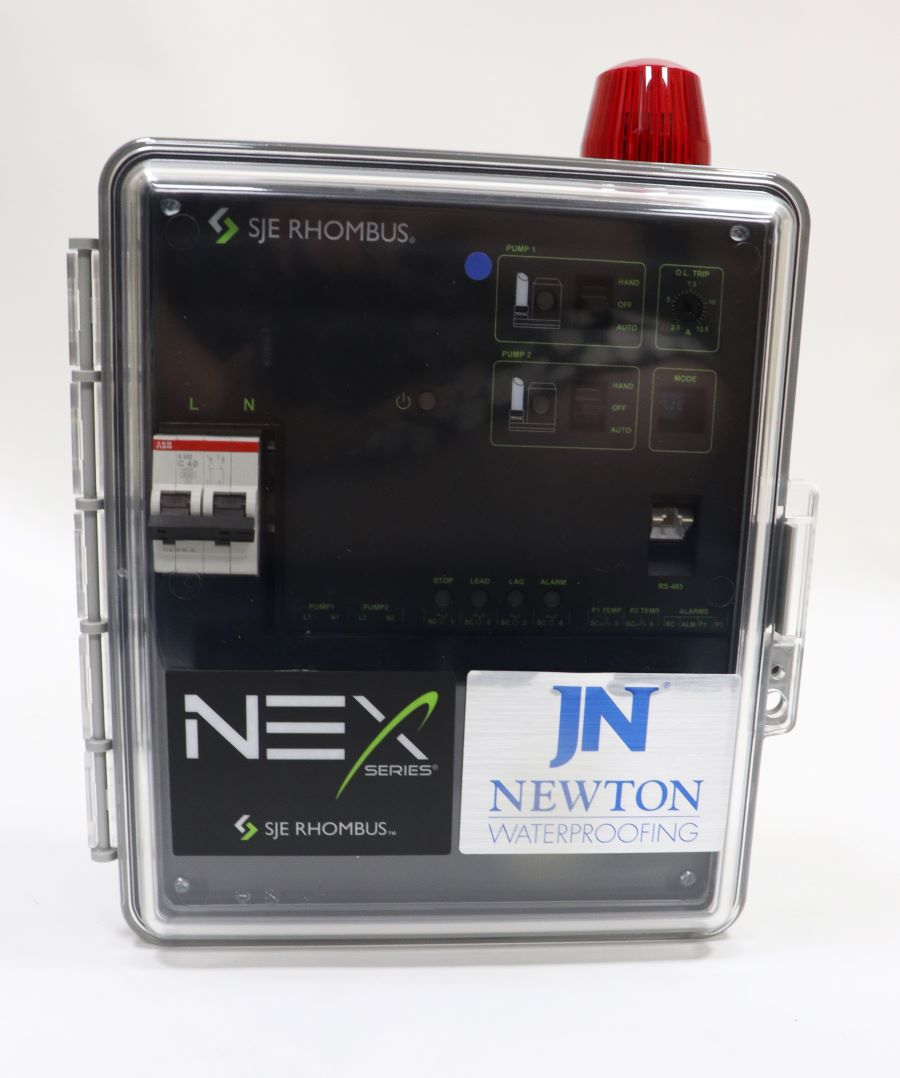

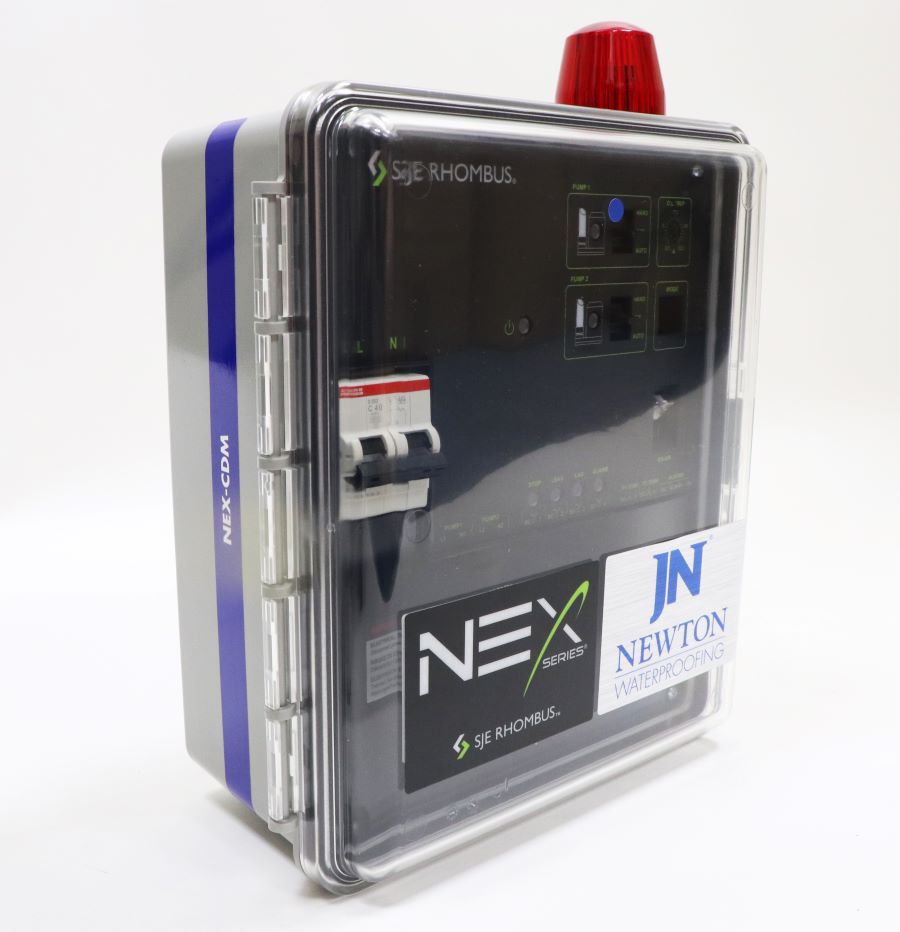

  • NEX-CDM for surface and groundwater pumping operations for use with the Newton CDM System

Self-diagnostic programs test the pumps on a weekly basis to prevent clog or seizure and to test pump performance parameters.

The NEX control panel will operate two 230V AC pumps to a maximum rated current of 12.5 amps and features advanced Machine Learning Technology developed specifically for pumping applications. The proprietary algorithm continuously monitors the tank fill time and discharge times and “learns” what is normal. Should the pump performance drop due to clogging, impeller damage, or changes in head conditions, the PSE function will trigger an alarm. This intelligent solution is not affected by flow variations into the tank and can detect pump Dry Run conditions.

  • Key Benefits
  • Typical Applications
  • Technical Specifications
  • Key Benefits

    Key Benefits

    • High level alarm
    • Pump fault detection and automatic pump switching
    • Multiple pump control modes
    • Float switch fault detection
    • Weekly pump test run function
    • Protection against short circuits, pump overload and pump over-temperature
    • Intelligent system fault detection, including pump clogged, shaft / impeller damage, check valve damage, pipe broken, dry run, etc
    • 360° visual alarm beacon

    Typical Applications

    Typical Applications

    • Newton CDM System cavity drain waterproofing installations
    • Lift pump chambers
    • Sump pump basins
    • Holding Tanks
    • Other ground water and wastewater/sewage applications

    Technical Specifications

    Technical Specifications



    Technical Specification  Result
    Input Voltage Single phase, 110/220/240VAC, 50/60Hz
    Rated Motor Current 2.5A~12.5A
    Application Temperature -5~40°C
    Application Humidity 50% at 40°C . non-condensing
    Altitude  < 2000m
    Enclosure Polycarbonate enclosure, 254mm (H) X 203mm(W) X 102mm(D)
    Protection Grade  IP65
    Flame Retardant Rating UL94 5VA
