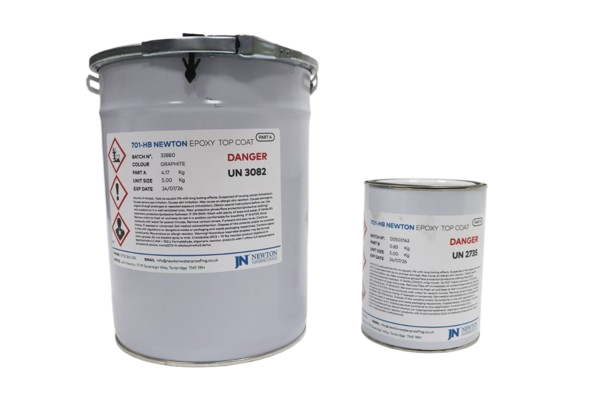

Epoxy Top Coat

Two-component solvent-free epoxy resin based floor coating developed to provide protective and decorative properties to concrete, steel and other substrates. After mixing together, an easily applied chemical and abrasion-resistant finish is produced.

  • Chemical and Abrasion Resistance: Provides a durable, chemical-resistant finish that protects concrete, steel, and other substrates.
  • Solvent-Free and Low Odour: Formulated without solvents, ensuring minimal odour during application for a more pleasant environment.
  • Excellent Adhesion: Bonds strongly to concrete and steel surfaces, enhancing longevity and reliability.
  • High Build Thickness: Offers a high build coating that provides substantial coverage and protection with fewer coats.
  • Easy Application: Simple to apply after mixing components, facilitating quick installation and reducing downtime.
  • Hygienic and Easy to Clean: Creates a fully sealed surface that is hygienic and easy to maintain, ideal for environments requiring cleanliness.

  • Key Benefits
  • Typical Applications
  • Technical Data
  • Key Benefits

    Key Benefits

    • Solvent free, low odour.
    • Provides a fully sealed surface with very good chemical resistance.
    • Excellent adhesion to concrete and steel.
    • High build.
    • Tough and durable.
    • Easily applied.
    • Hygienic and easily cleaned.

    Typical Applications

    Typical Applications

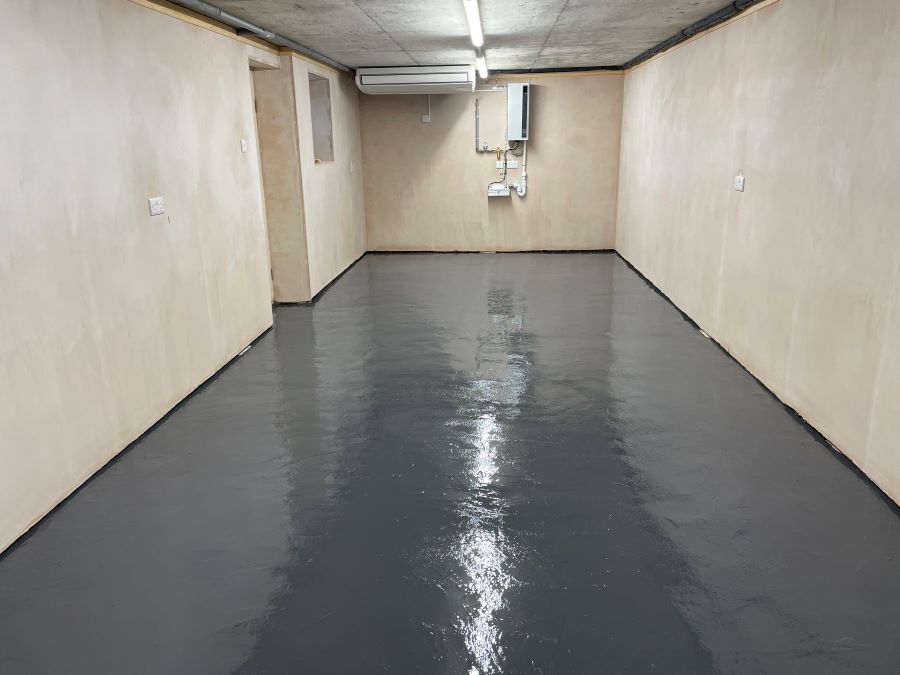

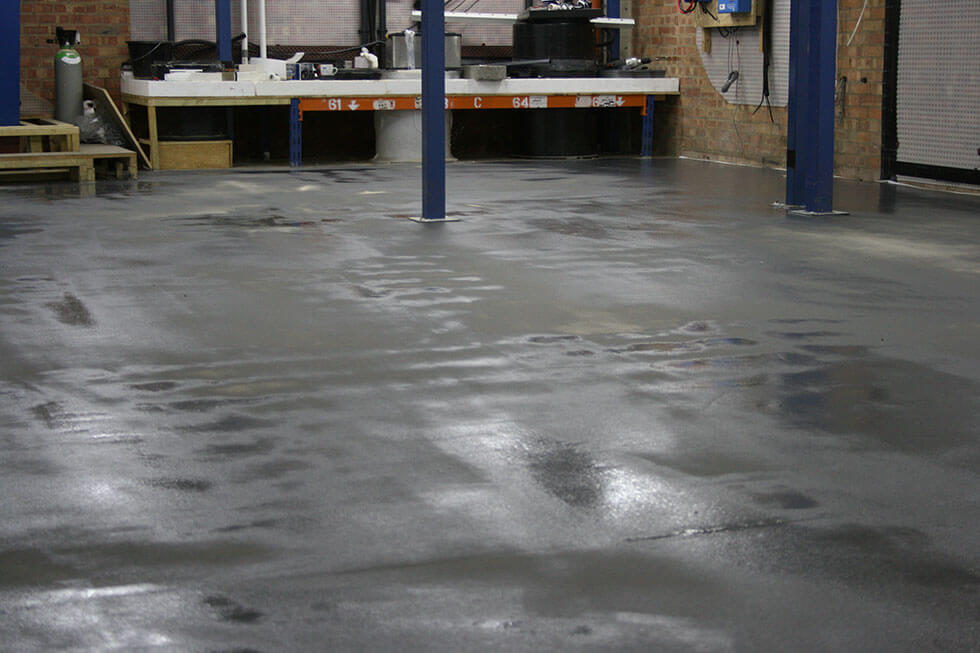

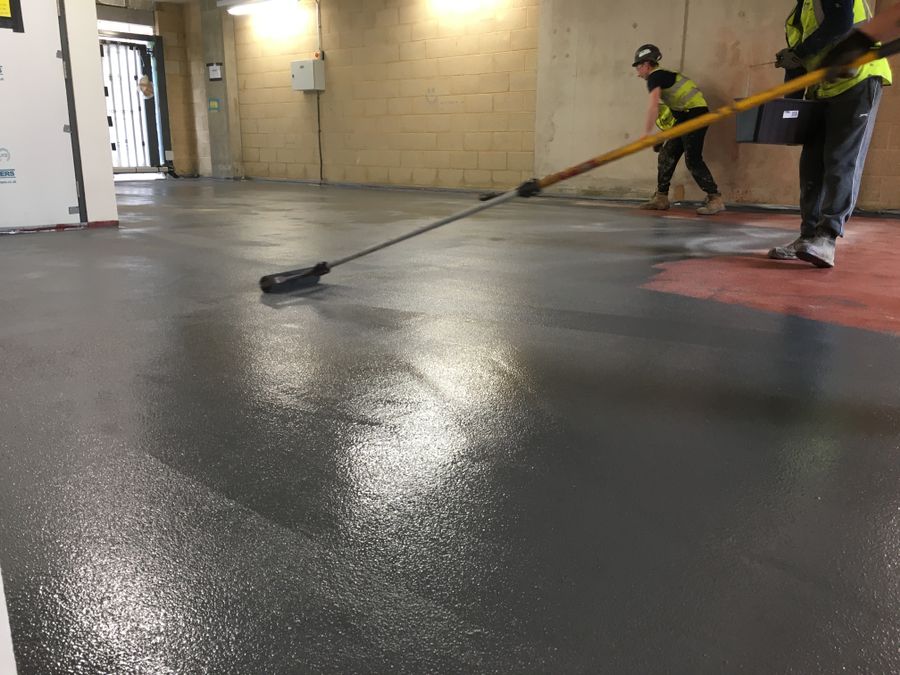

    As a waterproof, tough, chemical resistant floor coating or as an internal lining for concrete or steel storage tanks containing oils, chemicals, water etc. It is particularly suitable for chemical bunds.

    Suitable for use in:

    • Food preparation areas
    • Breweries
    • Abattoirs
    • Bottling factories
    • Manufacturing areas
    • Industrial units
    • Warehouses
    • Aircraft hangers

    Technical Data

    Technical Data

    Cured Performance Result
    Colour Grey or Red
    Membrane thickness – First coat over primer 0.15mm
    Membrane thickness – Further protective coats 0.15mm
    Adhesion to concrete (>B2.0) 3.5 MPa
    Impact resistance – Class 2 14 Nm
    Abrasion resistance AR 0.5
    Resistance to dilute acid/alkaline Excellent
    Shore Hardness – D 82
    Slip resistance* +45 PTV
    Reaction to fire classification – Not determined Euroclass F

    *Slip resistant variant is standard to Carmine Red only unless by special order
