Epoxy DPM

  • Damp-Tolerable Solution: Effectively suppresses residual construction moisture and rising dampness in concrete and sand/cement screeds, even in environments with high relative humidity (above 85%).
  • Versatile Application: Suitable for a variety of applications including flooring, coatings, membranes, levelling compounds, and screeds, enhancing flexibility in construction projects.
  • Solvent-Free and Low Viscosity: Two-part, solvent-free formulation with low viscosity for easy application on damp substrates, ensuring speedy installation.
  • Quick and Simple Application: Can be applied quickly and simply by brush or roller, either in two coats for a glossy finish or one coat when used with Epoxy Primer, reducing application time and labor costs.

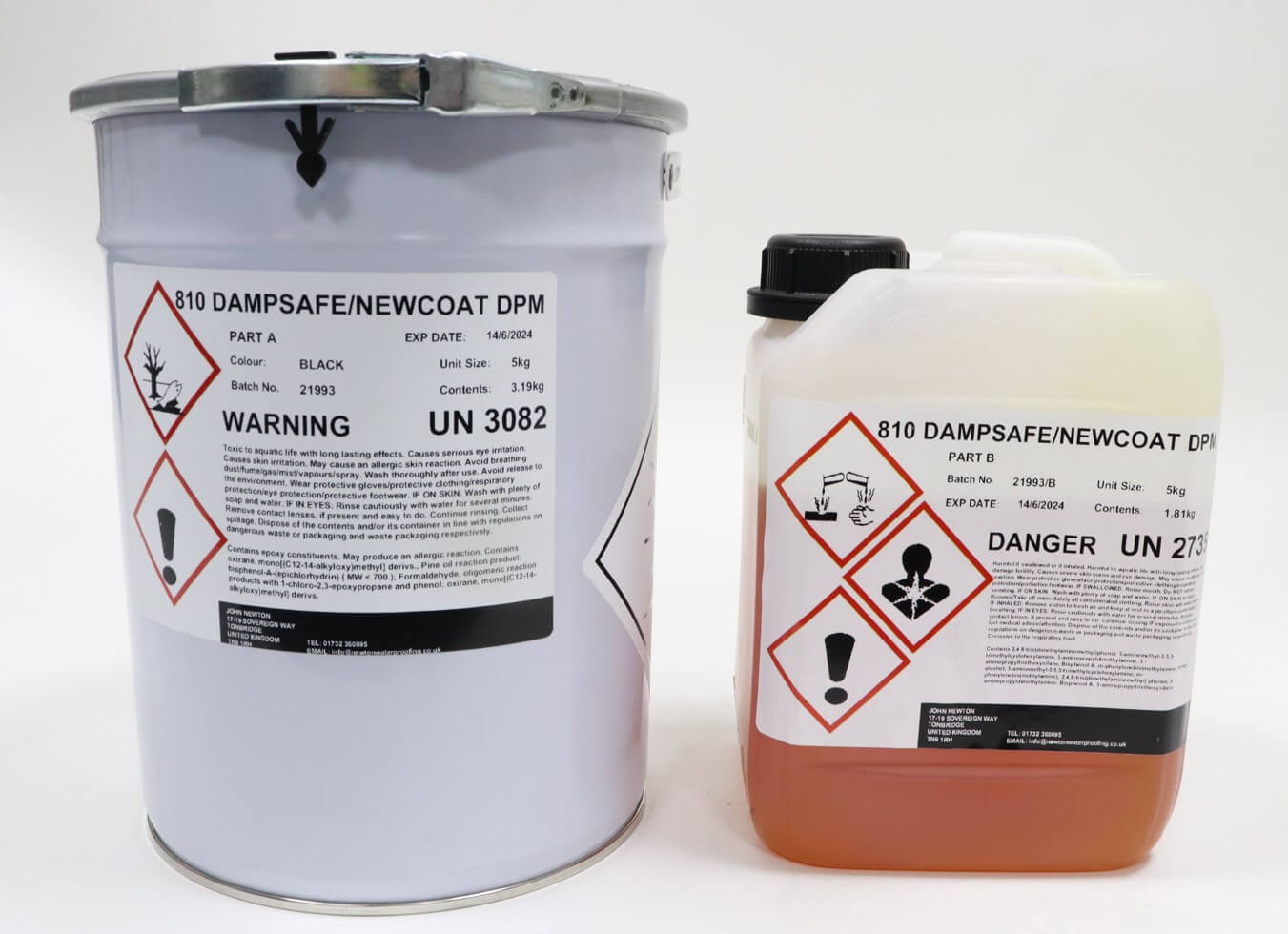

A two-part, solvent-free, damp-tolerable, epoxy-based damp-proof membrane (DPM) that suppresses residual construction moisture and rising dampness in concrete and sand/cement screeds and can be used in situations where the relative humidity level is above 85%.

The high quality, low viscosity formulation is suitable for application onto damp substrates, allowing for the speedy application of flooring, coatings, membranes, levelling compounds and screeds.

Epoxy DPM is quick and simple to use and can be applied over cementitious screeds and concrete. It is applied by brush or roller in two different coloured, gloss coats, or in just one coat if applied above Epoxy Primer.

  • Key Benefits
  • Typical Applications
  • Suitable Substrate
  • Technical Data
  • Key Benefits

    Key Benefits

    • Very damp tolerable.
    • Can be applied to concrete and screed 7 days after placement.
    • Solvent free.
    • Excellent vapour barrier.
    • High-bond DPM that provides a barrier to vapour and prevents osmotic blistering.

    Typical Applications

    Typical Applications

    Priming of damp, non-porous concrete and screed to provide a DPM and vapour barrier, prior to the application of moisture-sensitive flooring, coatings, membranes, levelling compounds and screeds in the following scenarios:

    • Car parks
    • Warehousing and storage
    • Garages
    • Plant rooms

    Suitable Substrate

    Suitable Substrate

    Correctly formed, compacted and prepared:

    • Concrete of at least 7 days old
    • Screed of at least 7 days old

    Technical Data

    Technical Data

    Cured Performance Result
    Colour Black
    Membrane thickness – First coat 0.23mm
    Membrane thickness – Further coats 0.23mm
    Adhesion to concrete (>B2.0) 3.5 MPa
    Water vapour transmission rate – UK Perm 0.097 g/m2/24hrs
    Water vapour diffusion resistance – Sd value 147.58m
    Water vapour diffusion resistance – μ value 451656 μ
    Water vapour diffusion resistance 737.90 MNs/g
    Reaction to fire classification – Not determined F



    This data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary.
