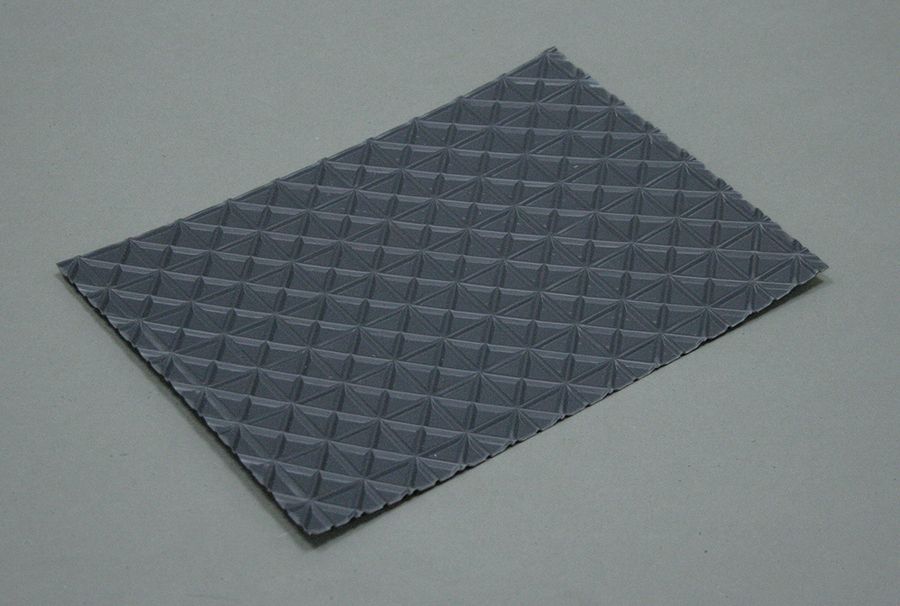

DampSafe 601 Slimline

Flat Loose Laid High Grade Flooring Membrane – Primarily for isolating moisture sensitive flooring from dampness in the floor slab, but can also be used as the floor membrane as part of the Newton CDM System, when the survey has ascertained that there is no risk of water entering through the body of the slab.

  • Advanced Moisture Isolation: Effectively isolates moisture-sensitive flooring from dampness in floor slabs, ensuring long-term protection.
  • Early Installation Capability: Can be installed above uncured slabs and as soon as concrete is walkable, speeding up construction timelines.
  • Exceptional Strength: Offers outstanding load-bearing capacity, capable of withstanding over 1000kN/m², ensuring durability under heavy loads.
  • Versatile Application: Functions as both a floor membrane in the Newton CDM System and a high-load DPC in structural block walls, providing versatile waterproofing solutions.
  • Chemical and Biological Resistance: Inert and highly resistant to water, alkalies, hydrocarbons, saline solutions, organic acids, minerals, bacteria, fungi, and other organisms, ensuring resilience in diverse environmental conditions.


  • Key Benefits
  • Typical Applications
  • Technical Data
  • Key Benefits

    Key Benefits

    • Can be installed above slabs that are not yet cured, and as soon as the concrete is walkable.
    • Able to resist very high compressive loading, with capability of over 1000kN/m2.
    • Can be installed as a high-load DPC within structural block walls.
    • Inert and highly resistant to water, alkalies, hydrocarbons, saline solutions and organic acids.
    • Not affected by minerals, and resistant to bacteria, fungi and other small organisms.

    Typical Applications

    Typical Applications

    • To protect flooring from not yet cured slabs.
    • Above contaminated floors
    • High grade DPM
    • As the damp proof floor membrane for use with Newton damp proofing wall membranes
    • Can be used as the flooring membrane within the Newton CDM System if specified by a trained waterproofing surveyor

    Technical Data

    Technical Data

    Installed Performance Result
    Compressive strength > 1000 kPa
    Compressive strength – Permanent loading 100 kPa
    Thermal conductivity 0.480 W/mK
    Water vapour diffusion resistance – Sd value 200M
    Resistance to fire Euroclass F
    Chemical resistance – Excellent Good
