Autocad & PDF's

A small selection of our detailed technical drawings for Type A – Internally Applied Waterproofing (Sections). If you are looking for a technical drawing that isn’t here, please contact our Technical Team who will be able to assist you further.

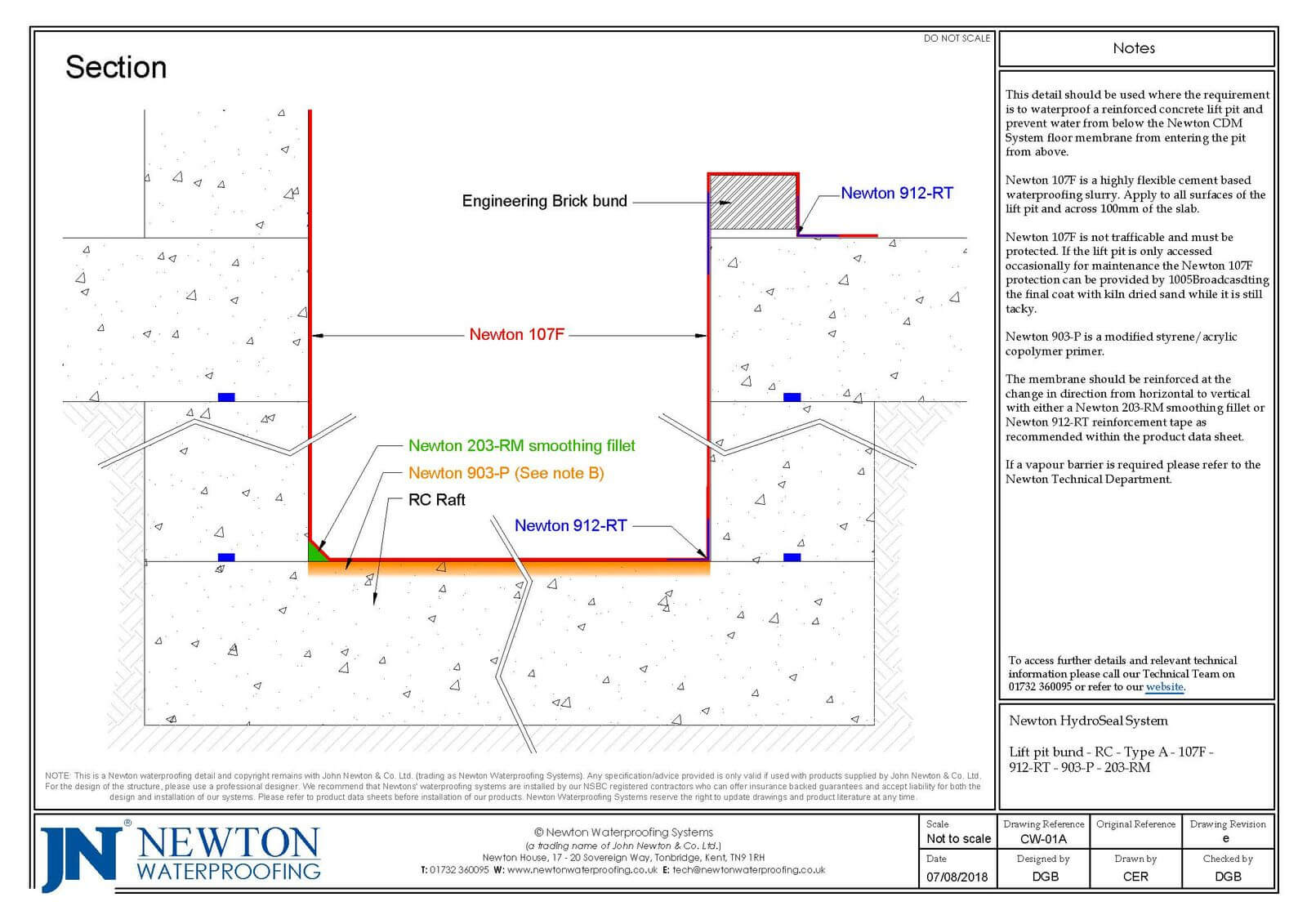

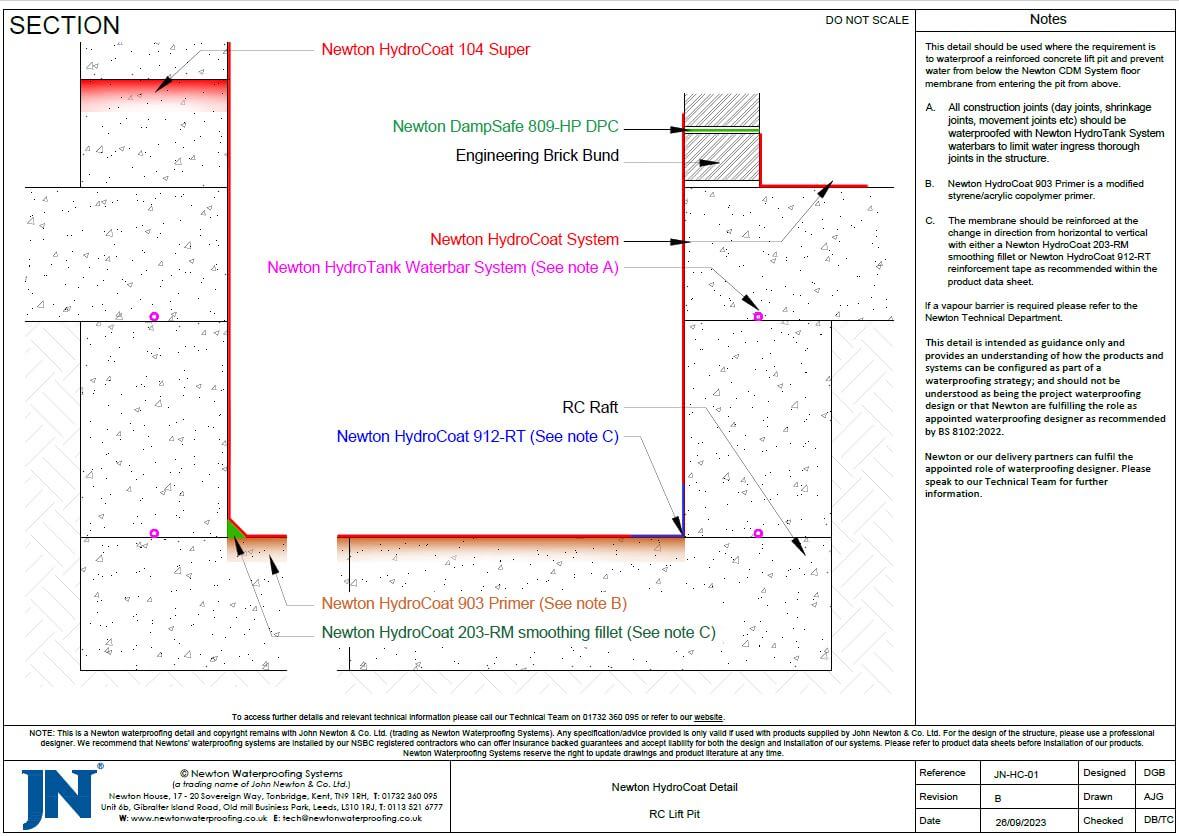

CW-01A

Lift pit

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

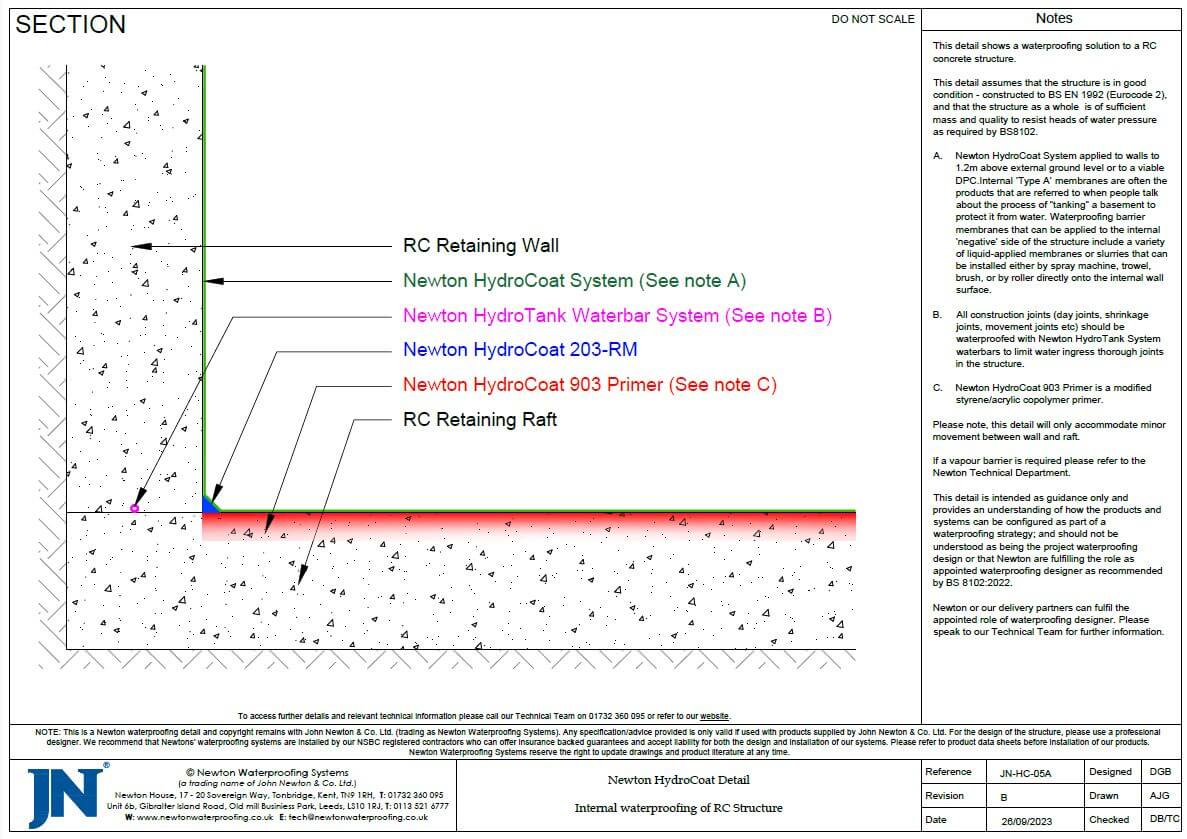

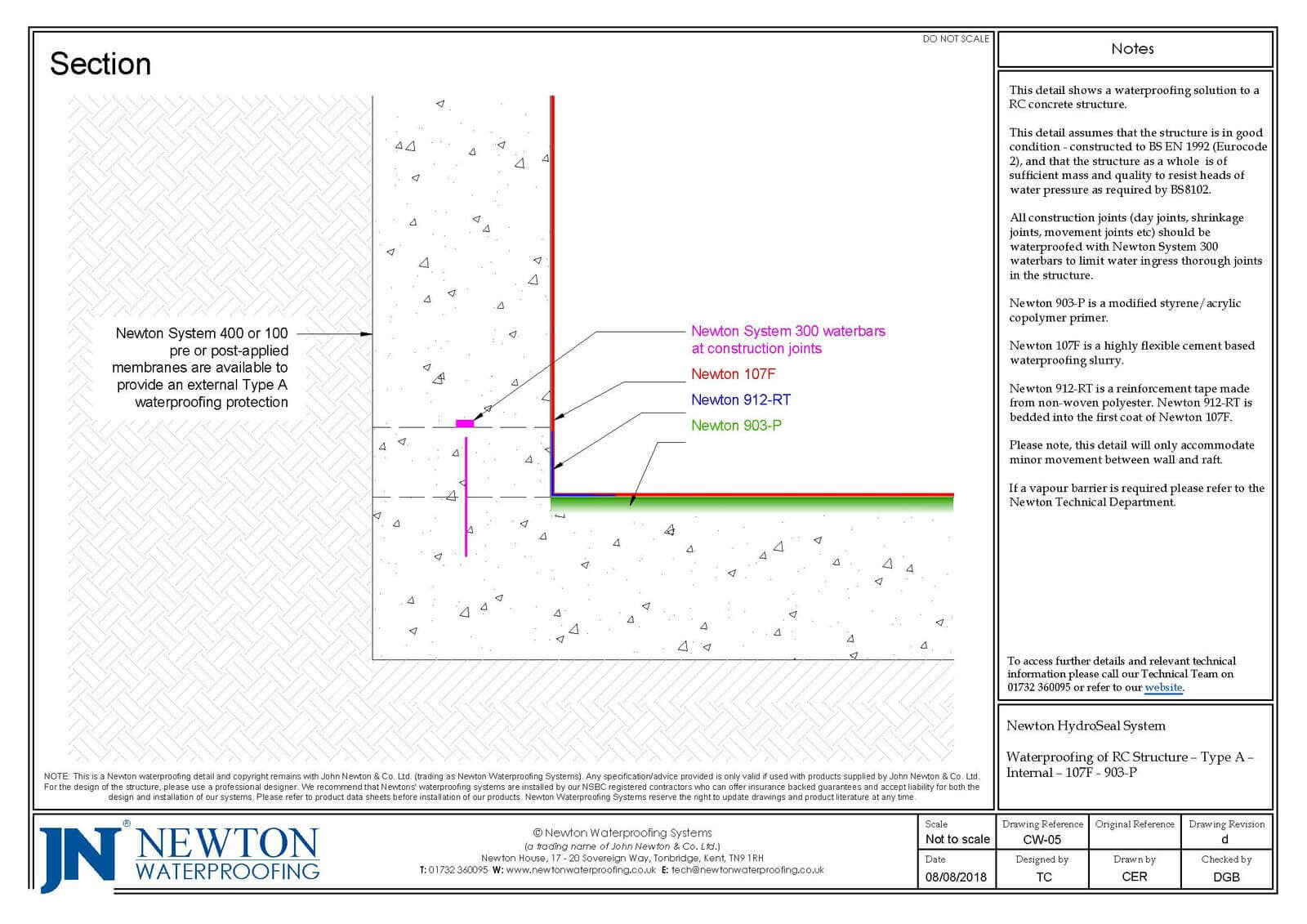

CW-05

RC structure

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

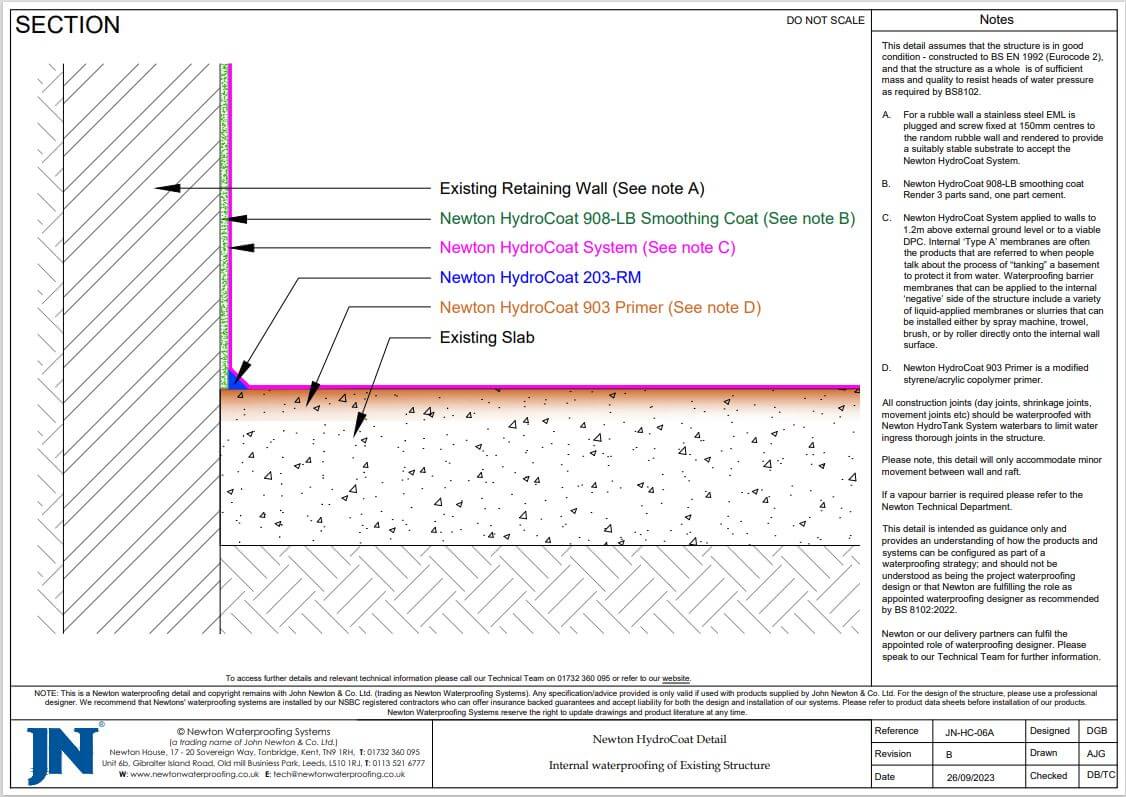

CW-06A

Existing structure

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

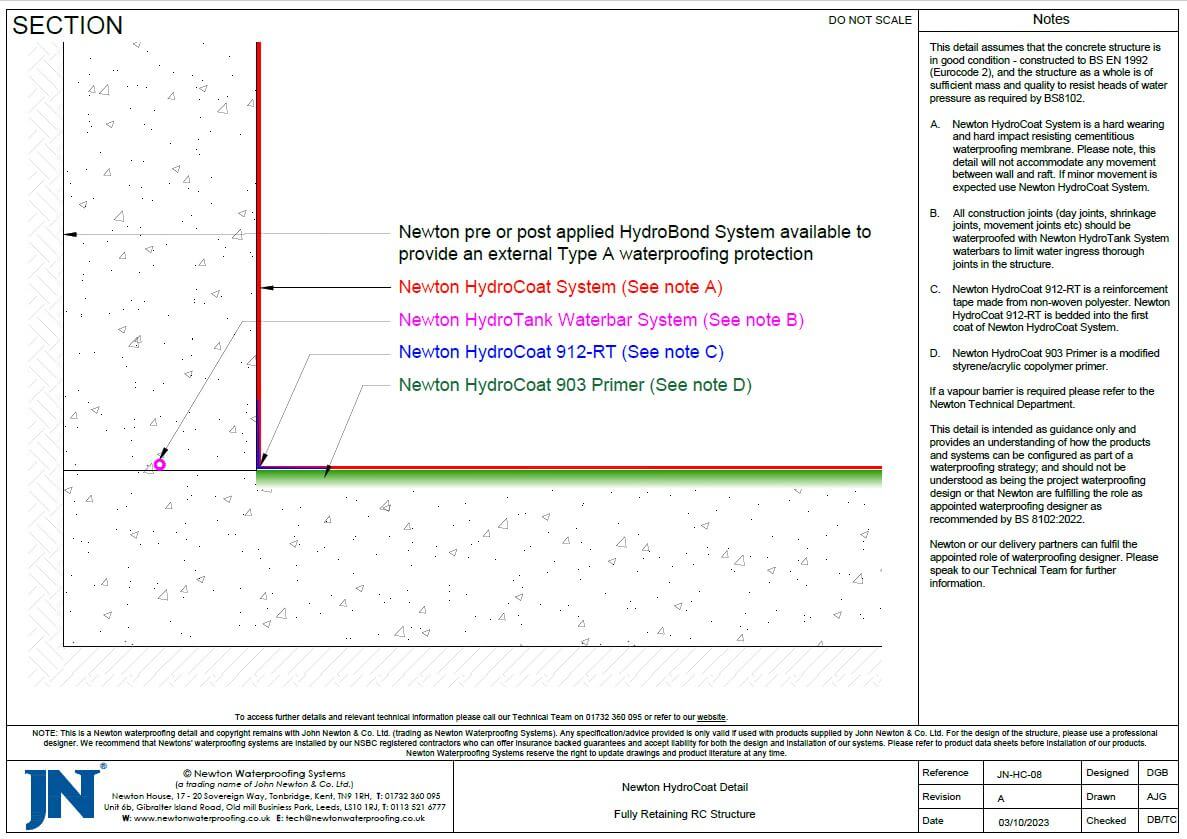

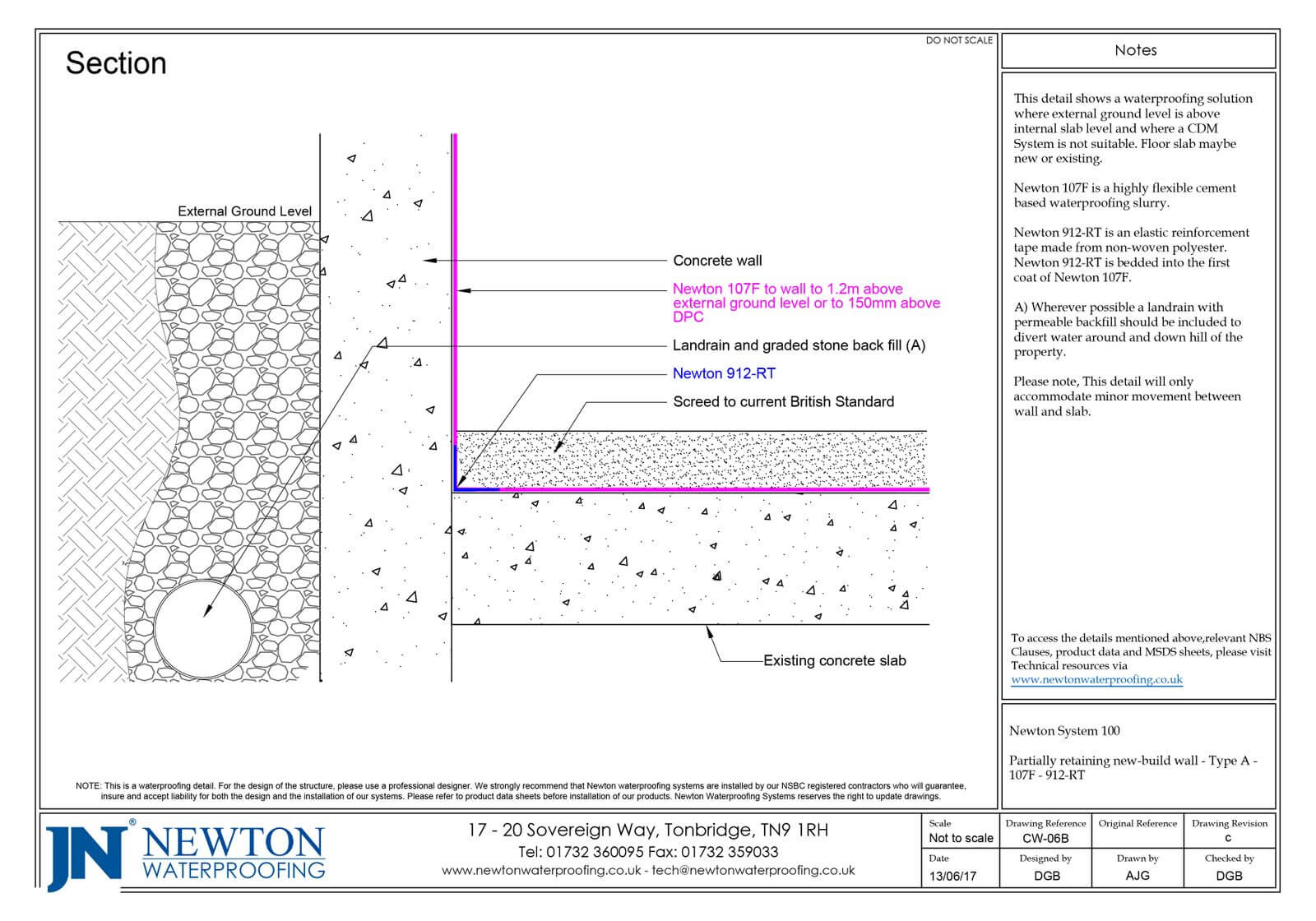

CW-06B

A fully retained RC structure

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

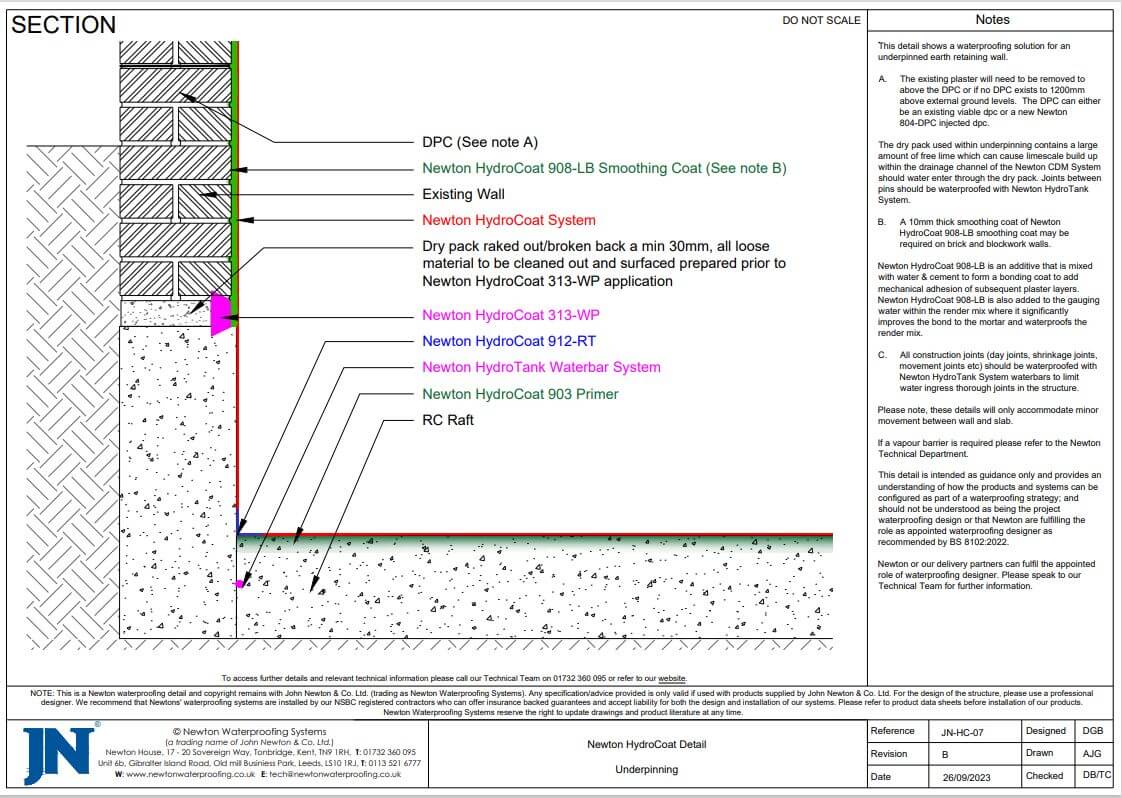

CW-07

Underpinned wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

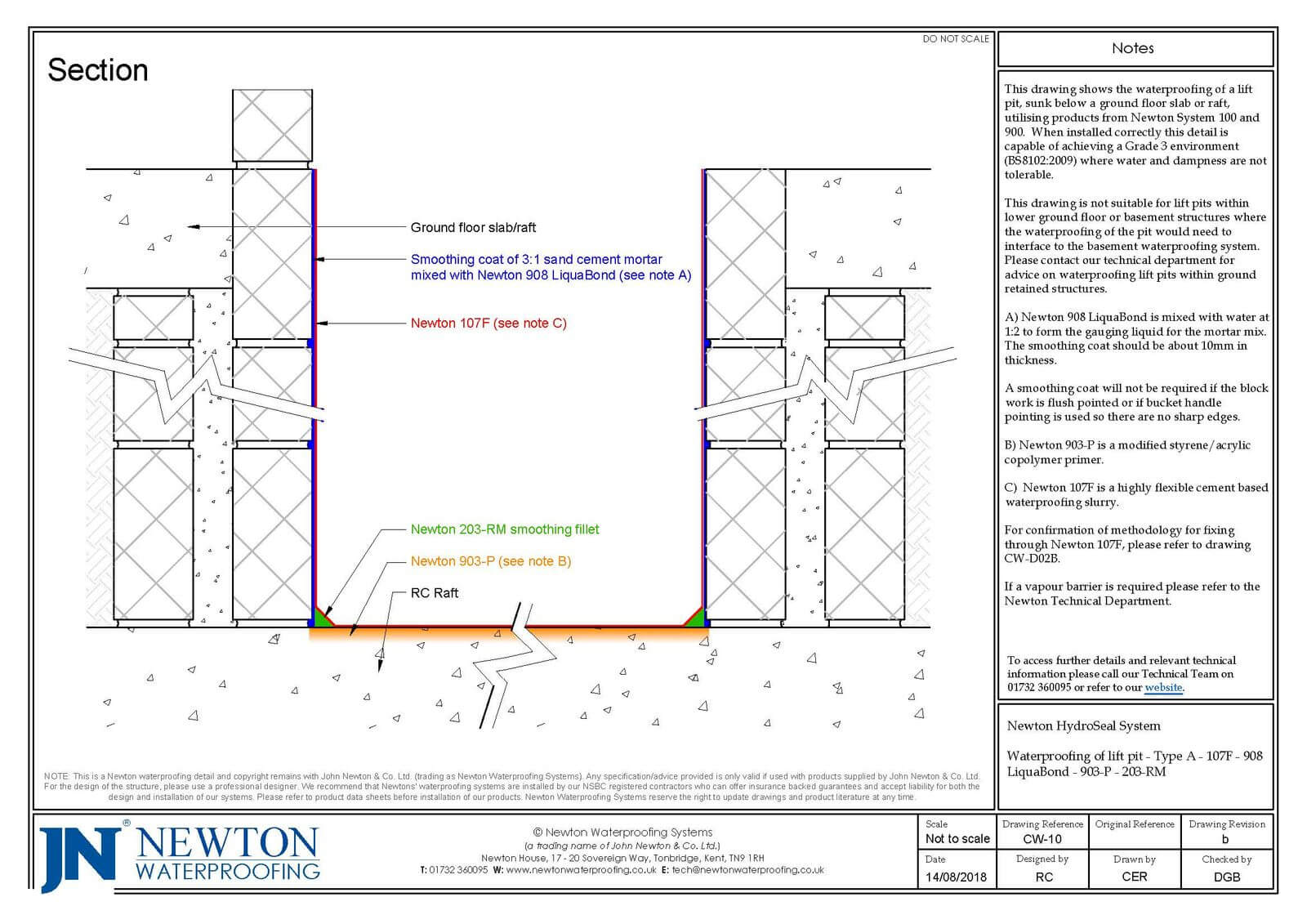

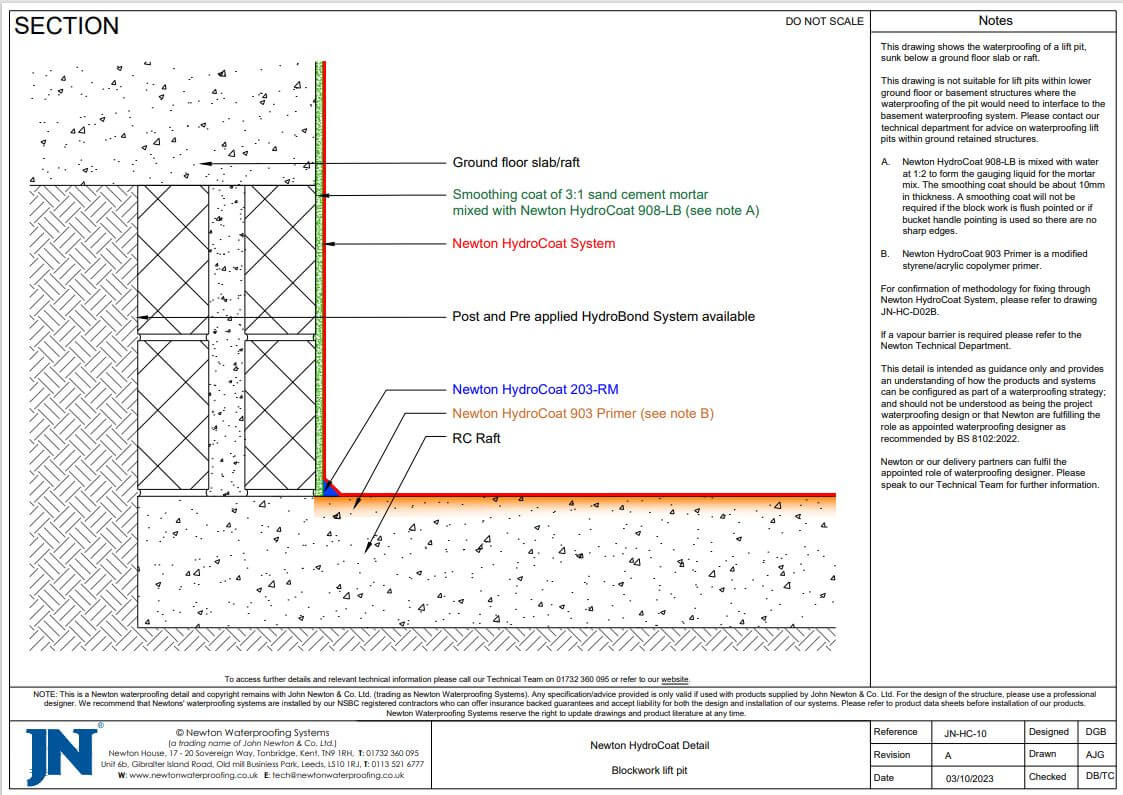

CW-10

Fully retained blockwork lift pit

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)
