Autocad & PDF's

A small selection of our detailed technical drawings for Type C Details (System 500 Cavity Drain Waterproofing). If you are looking for a technical drawing that isn’t here, please contact our Technical Team who will be able to assist you further.

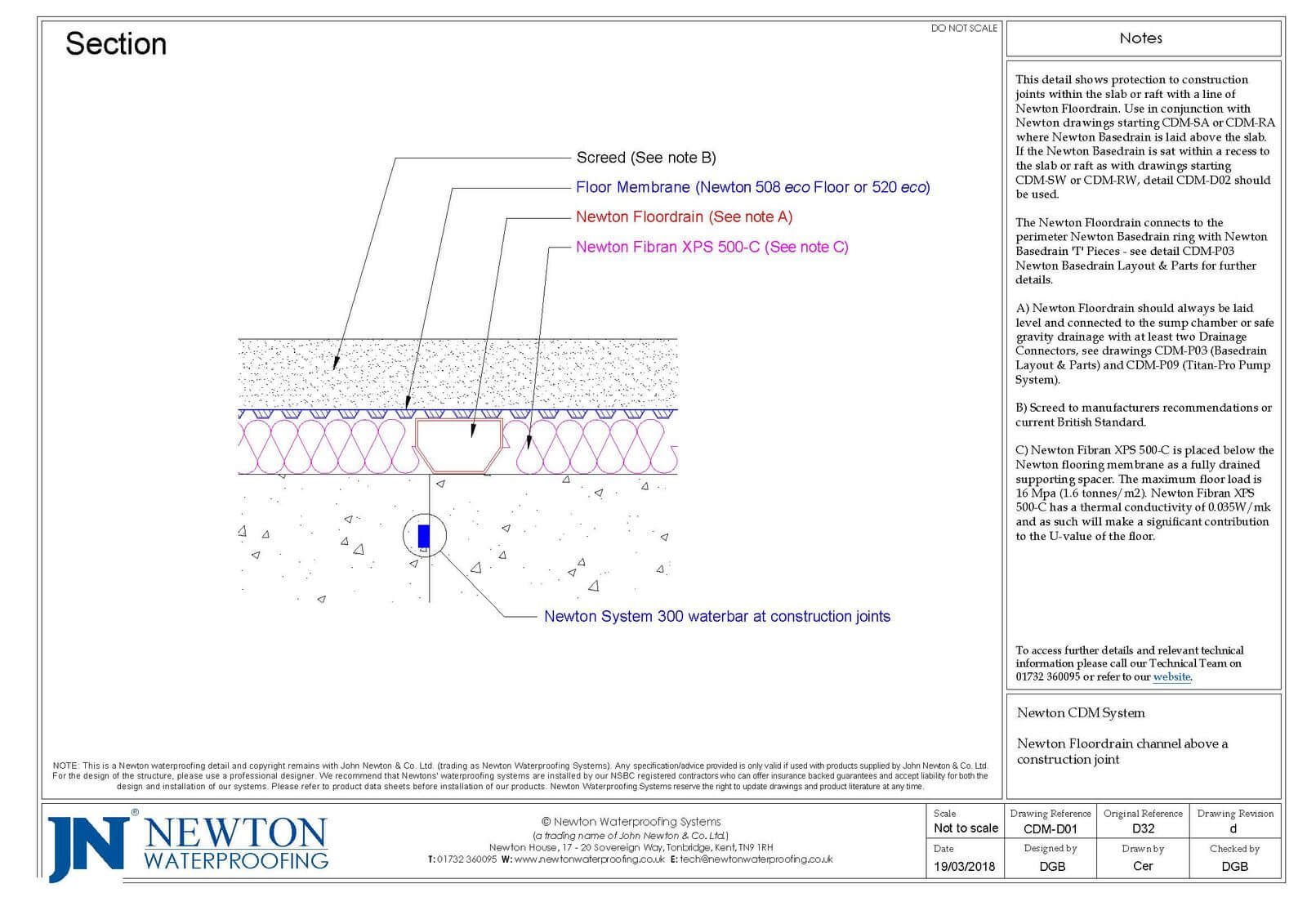

CDM-D01

Floordrain channel above a construction joint

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

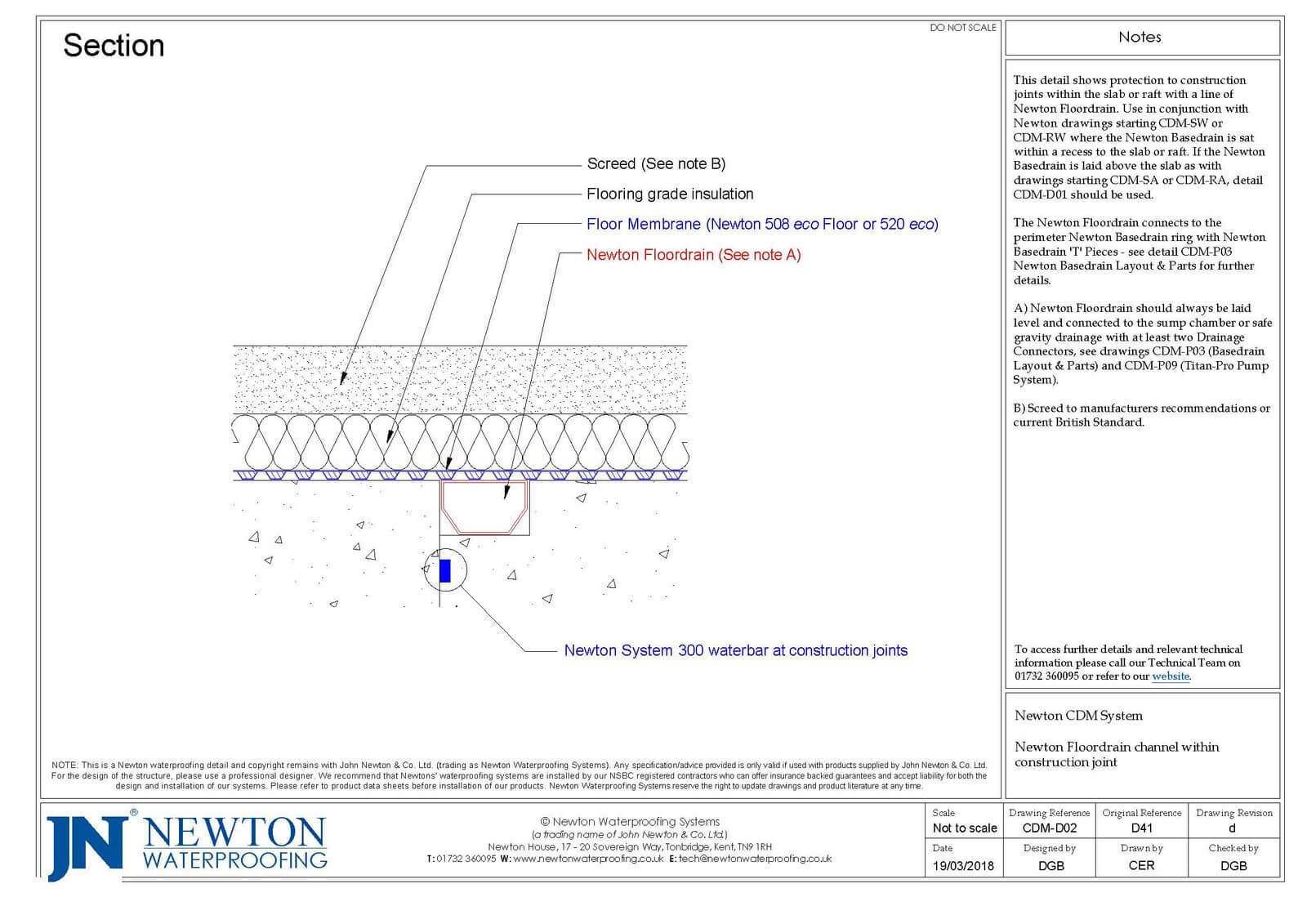

CDM-D02

Floordrain channel within construction joint

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

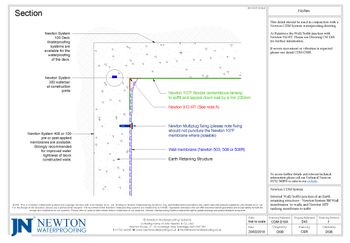

CDM-D10A

System 500 Wall membrane to 107F soffit junction

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

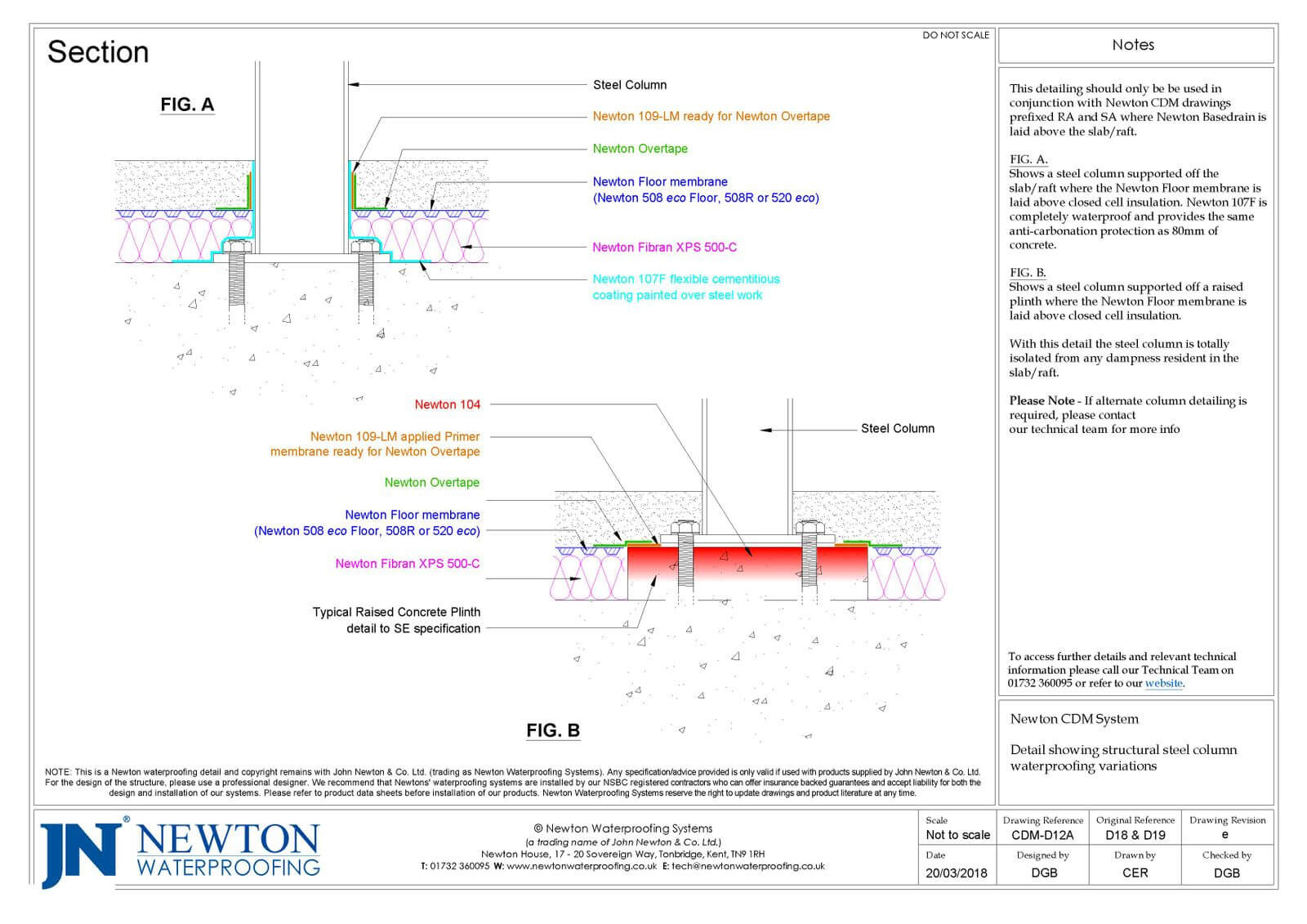

CDM-D12A

Structural steel column waterproofing variations

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

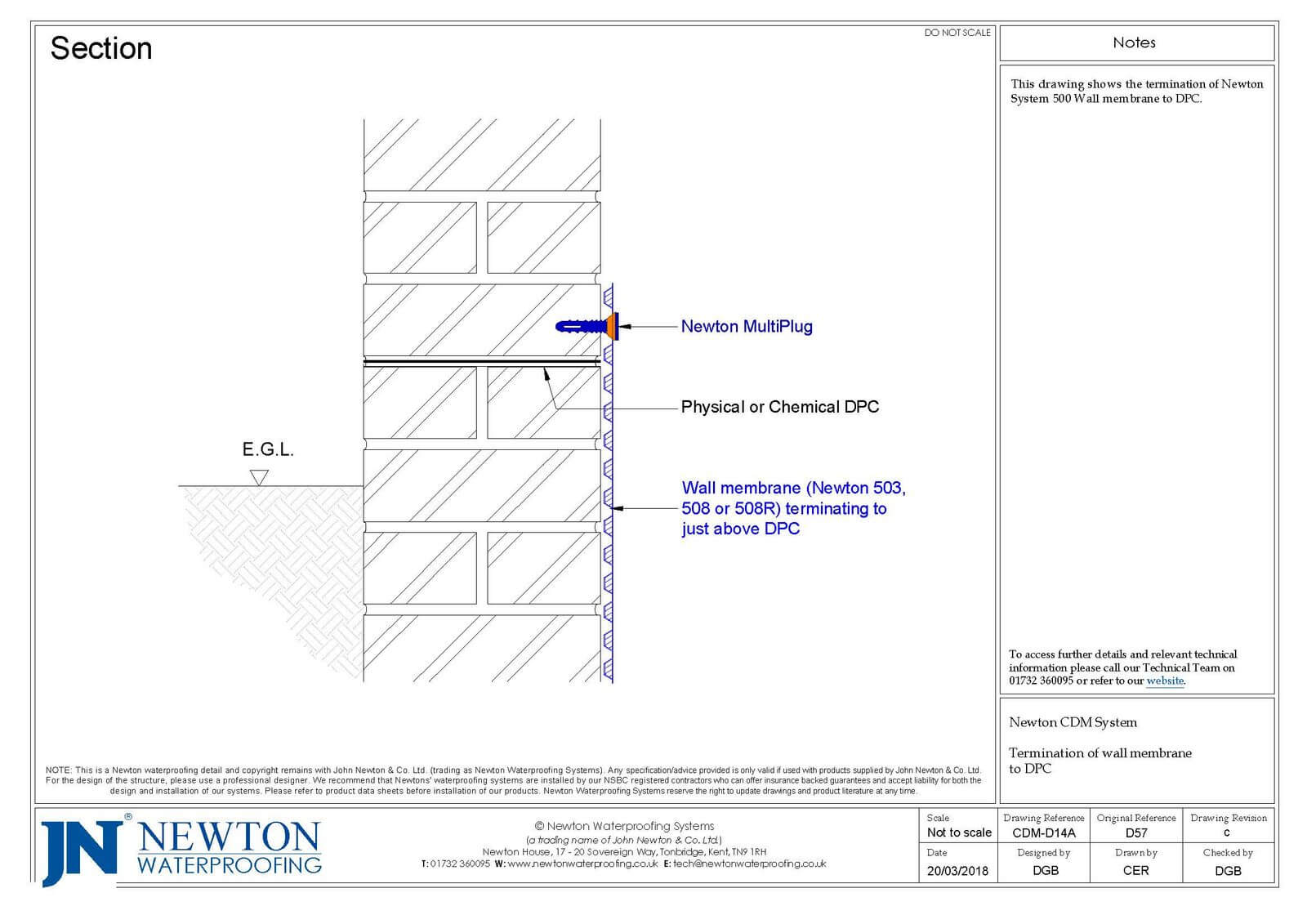

CDM-D14A

Termination of Newton Wall membrane over physical DPC

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

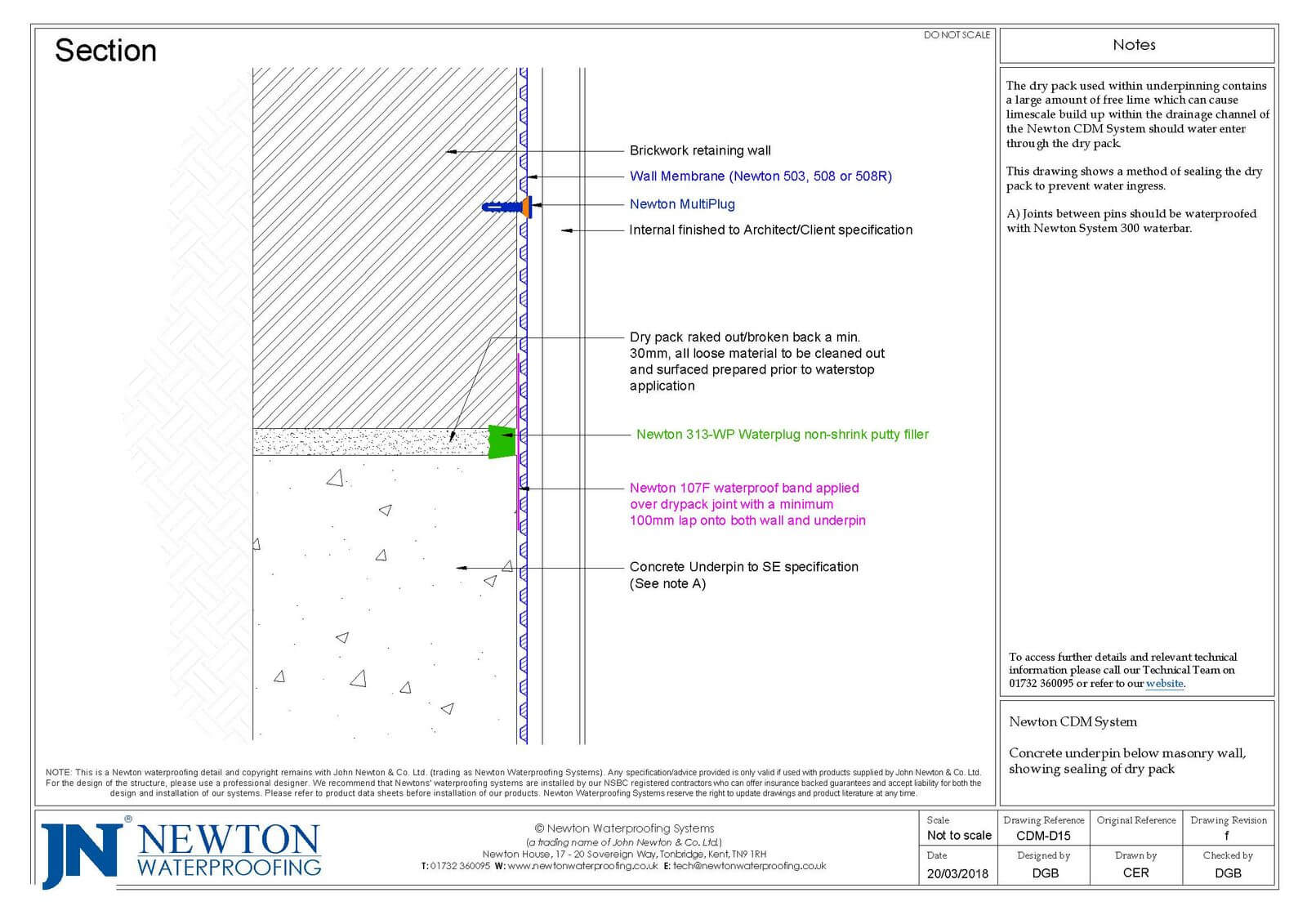

CDM-D15

Underpin to masonry wall drypack detail, System 500 internally

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

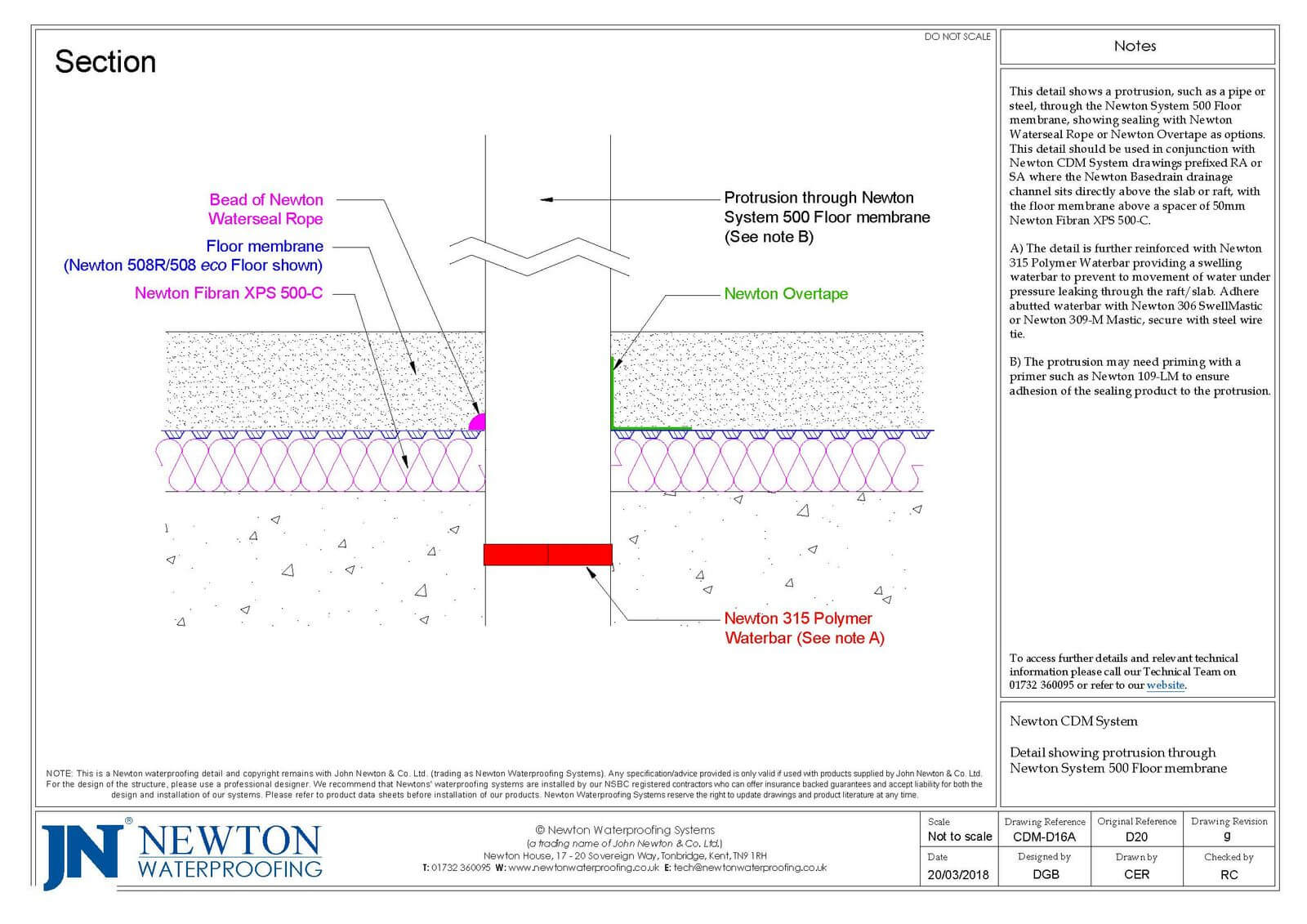

CDM-D16A

Sealing of protrusions through System 500 Floor membrane

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

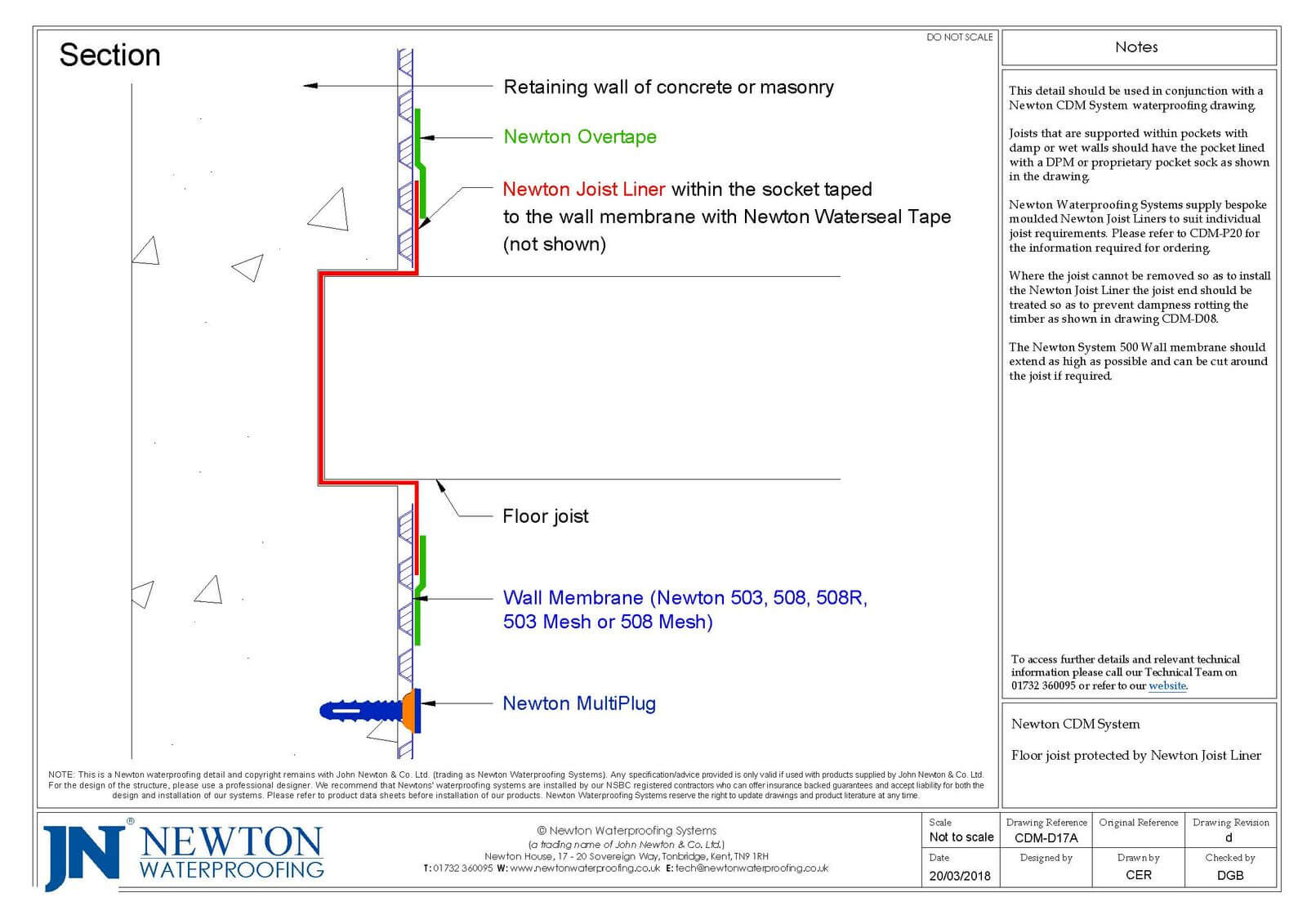

CDM-D17A

Termination of System 500 Wall membrane to joist pocket

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

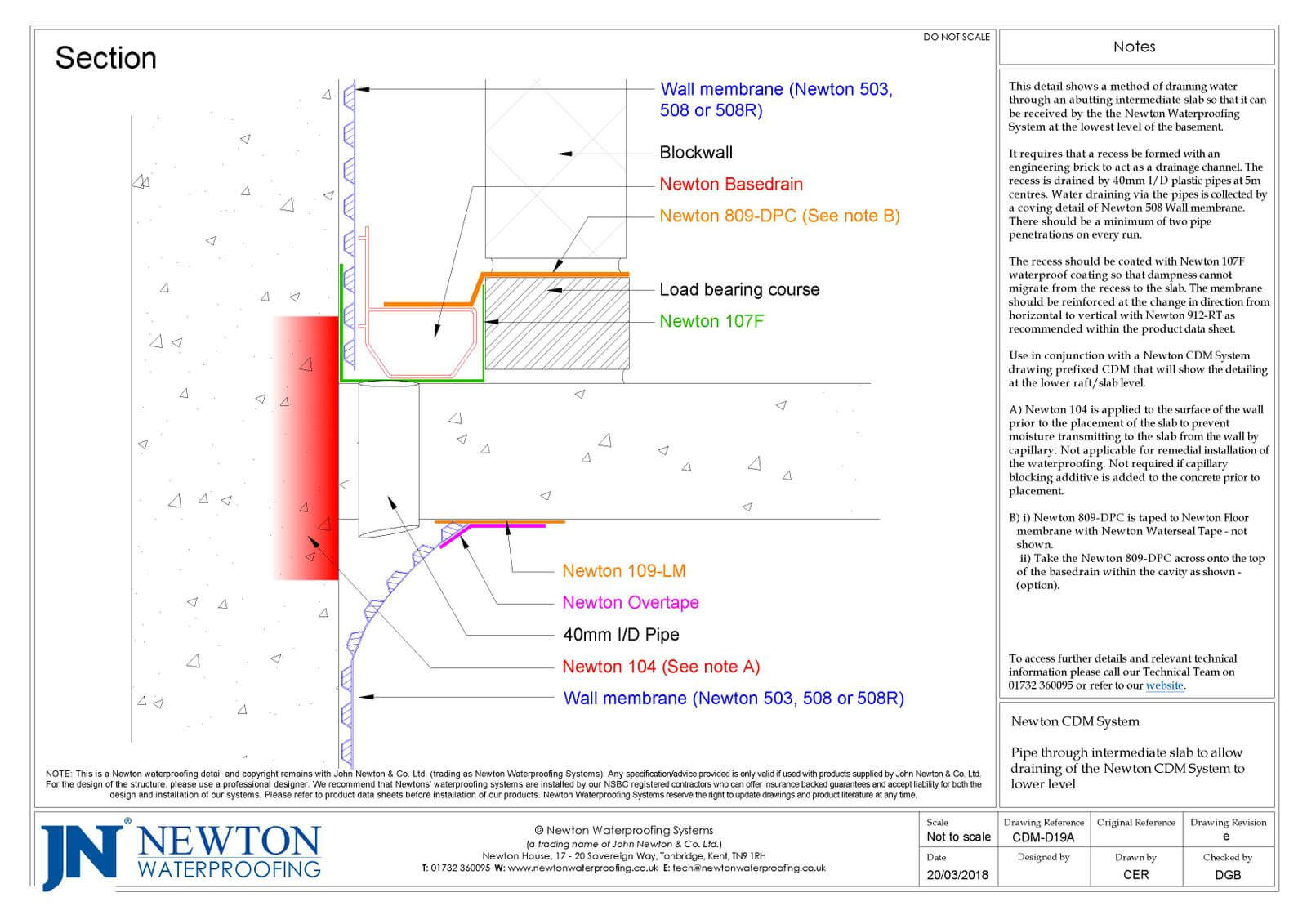

CDM-D19A

Pipe through intermediate slab

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

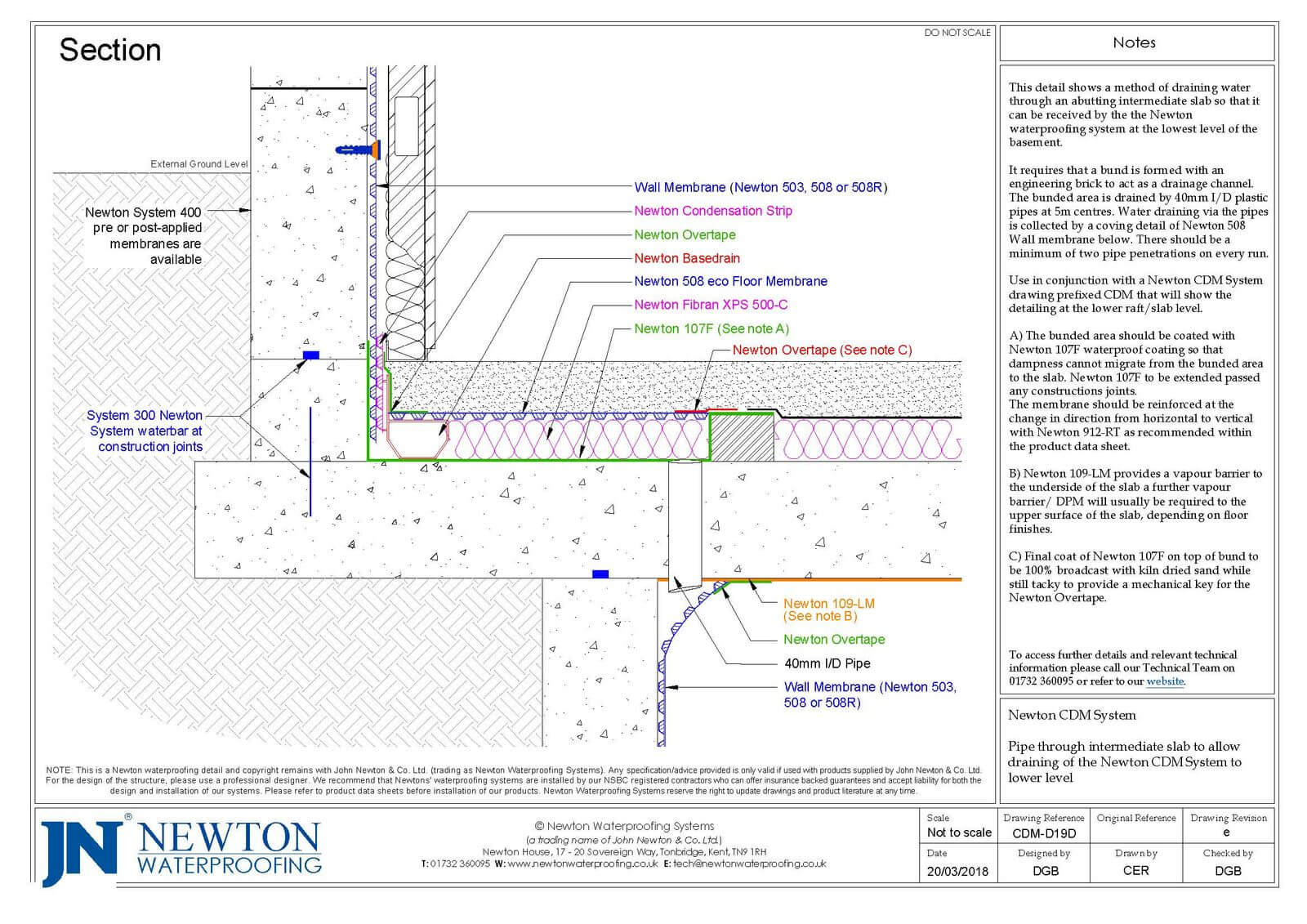

CDM-D19D

Pipe through intermediate slab

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

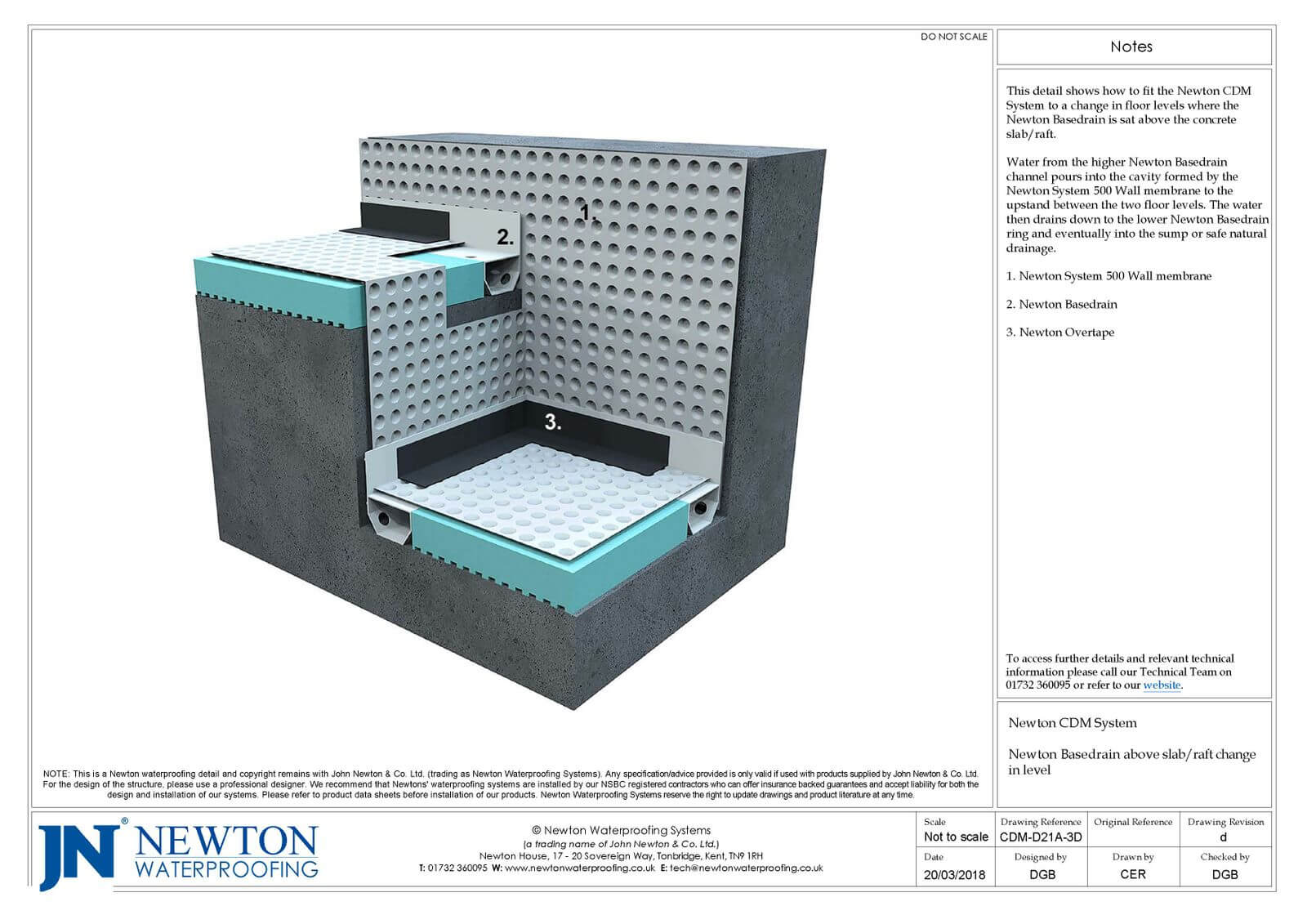

CDM-D21A-3D

Basedrain on Slab change in level

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

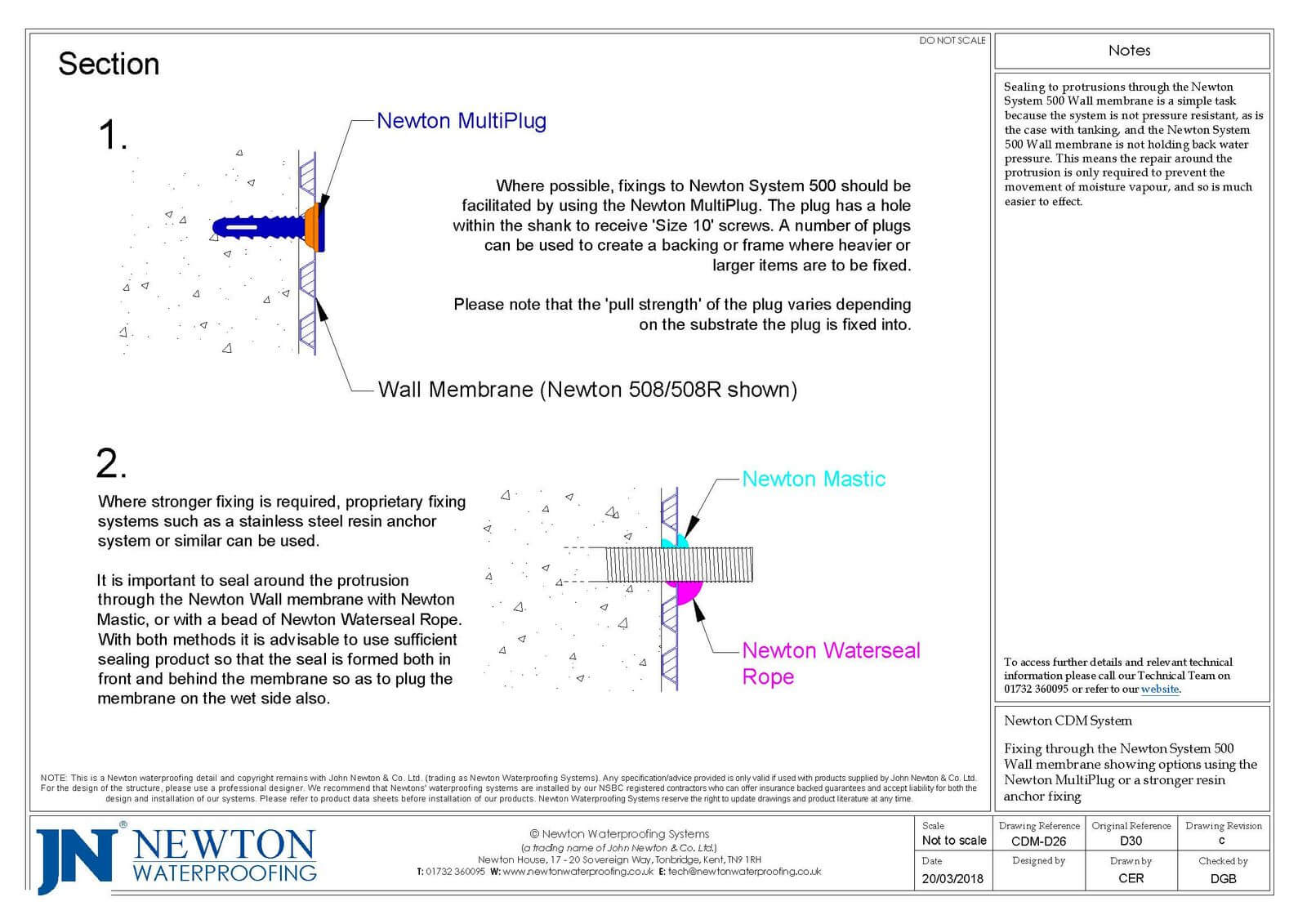

CDM-D26

Fixing through wall membrane

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

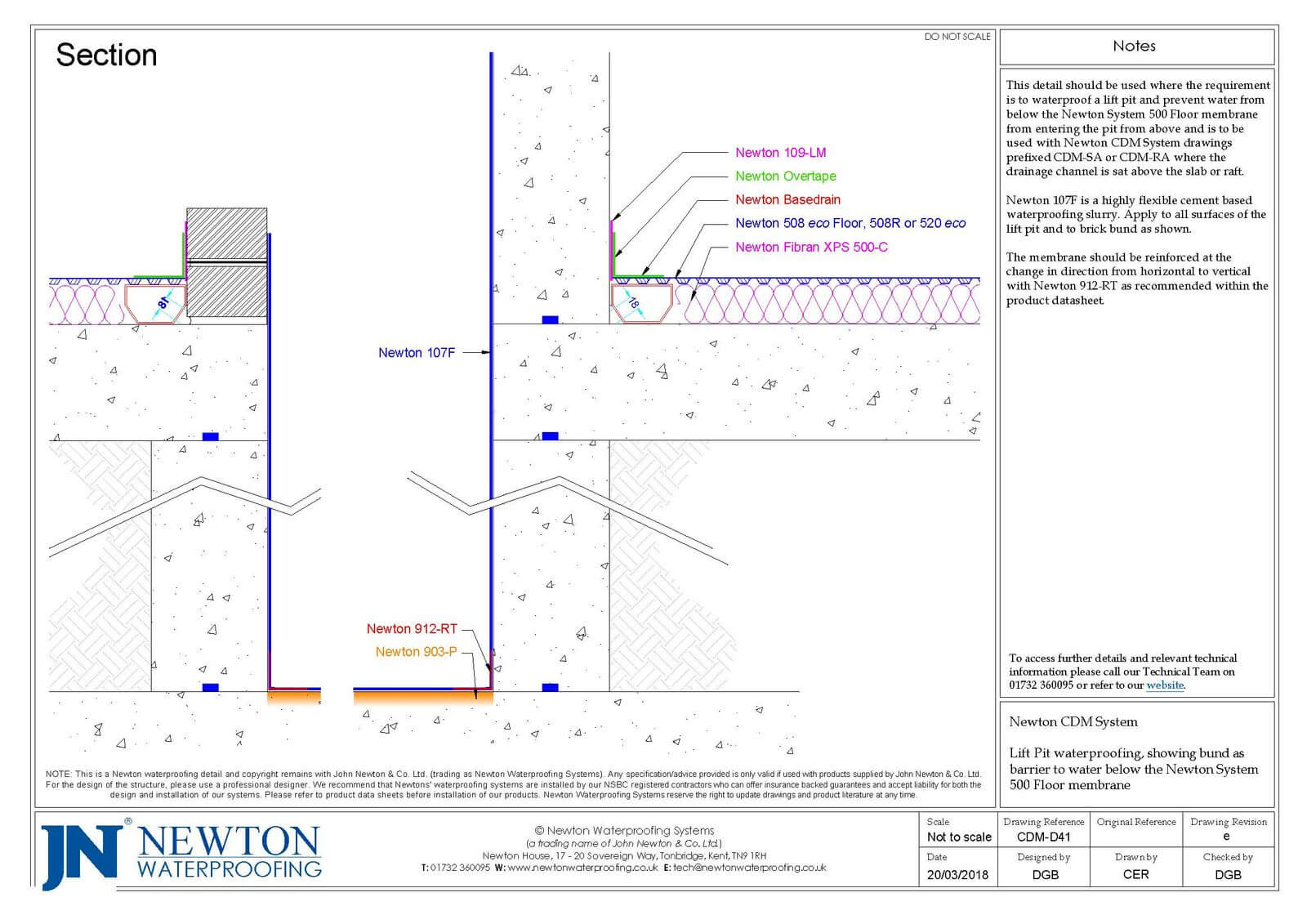

CDM-D41

Lift pit showing bund for System 500

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

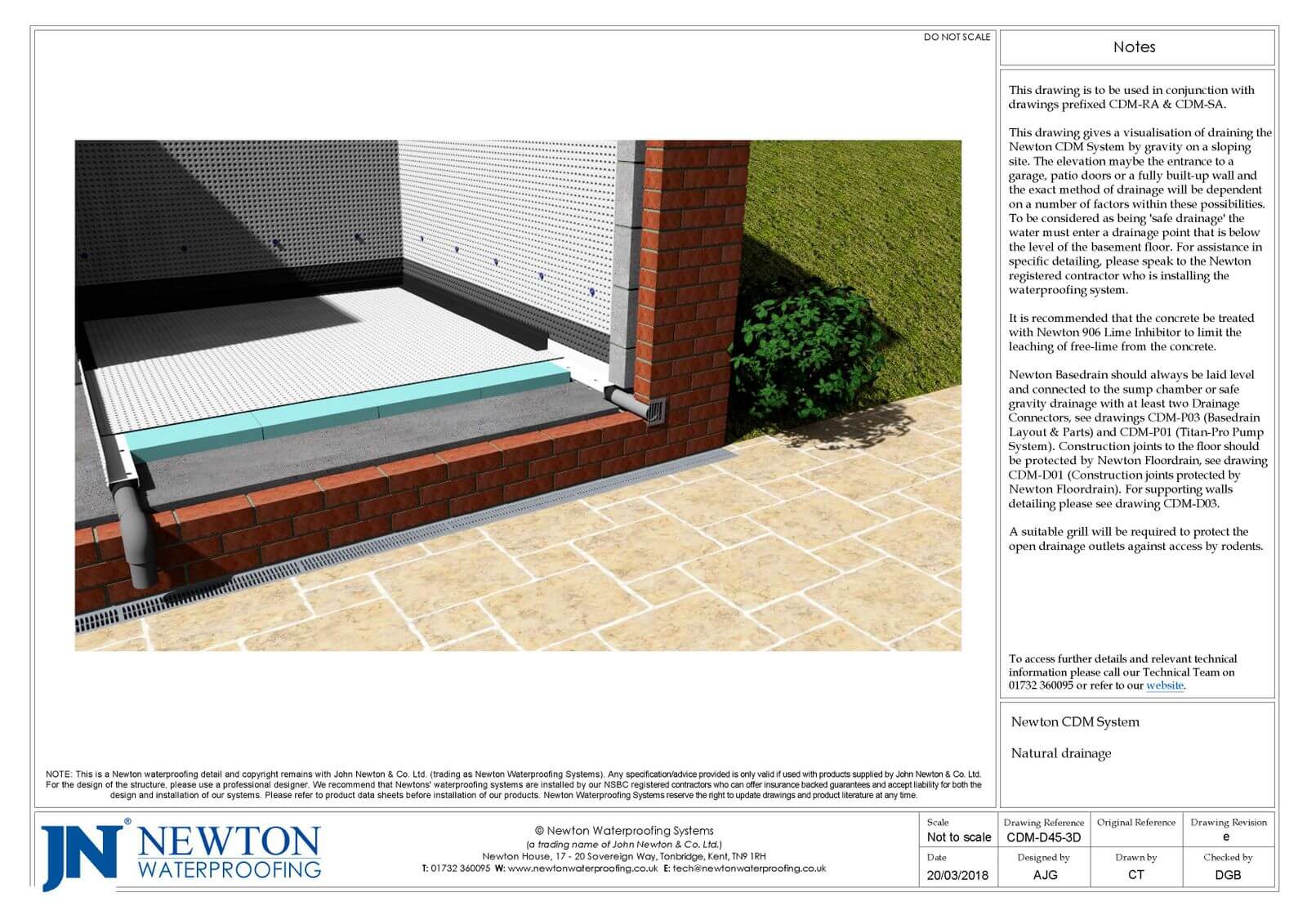

CDM-D45-3D

Natural drainage

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

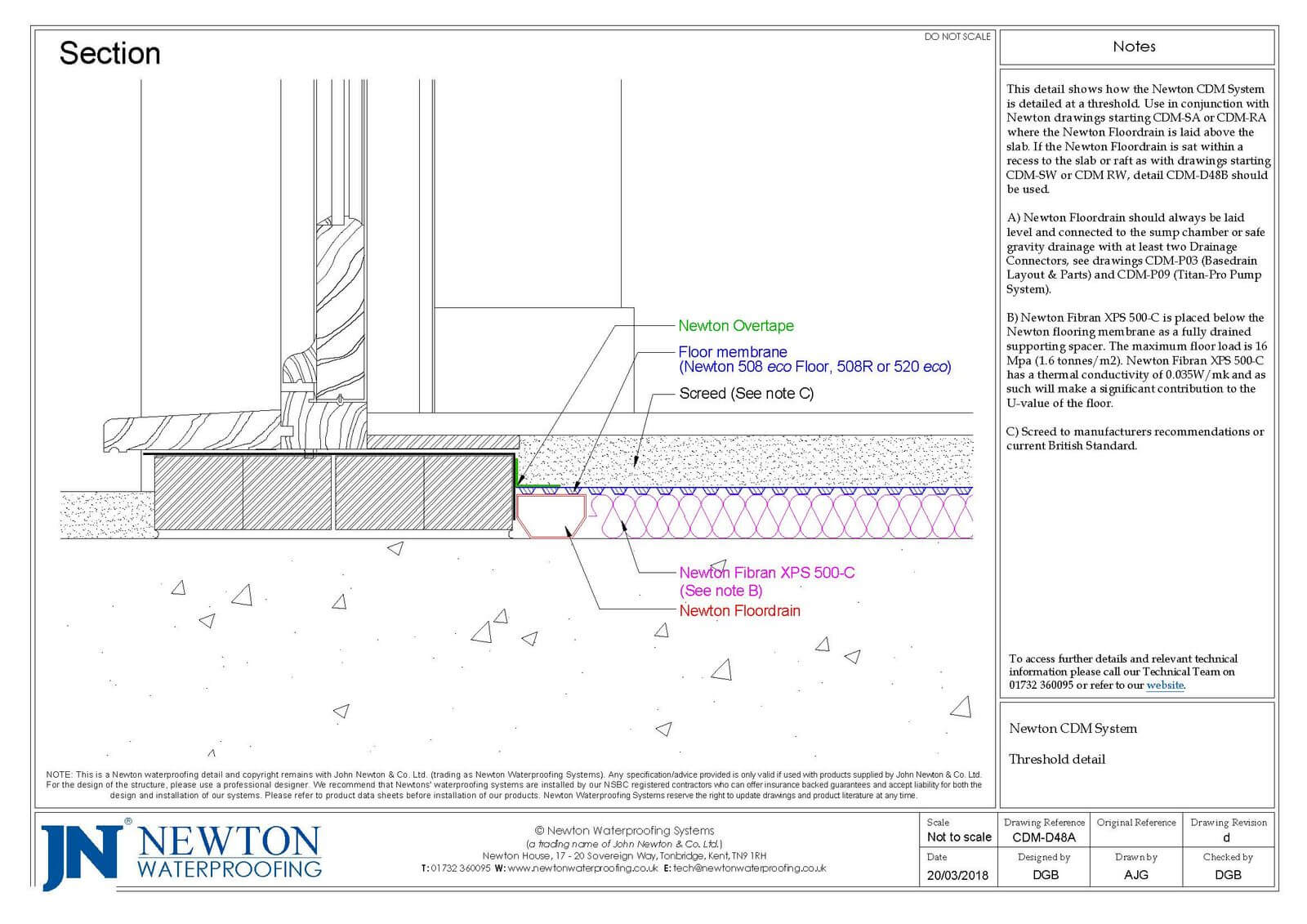

CDM-D48A

Threshold detail

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)
