Autocad & PDF's

A small selection of our detailed technical drawings for Type C Products (System 500 Cavity Drain Waterproofing). If you are looking for a technical drawing that isn’t here, please contact our Technical Team who will be able to assist you further.

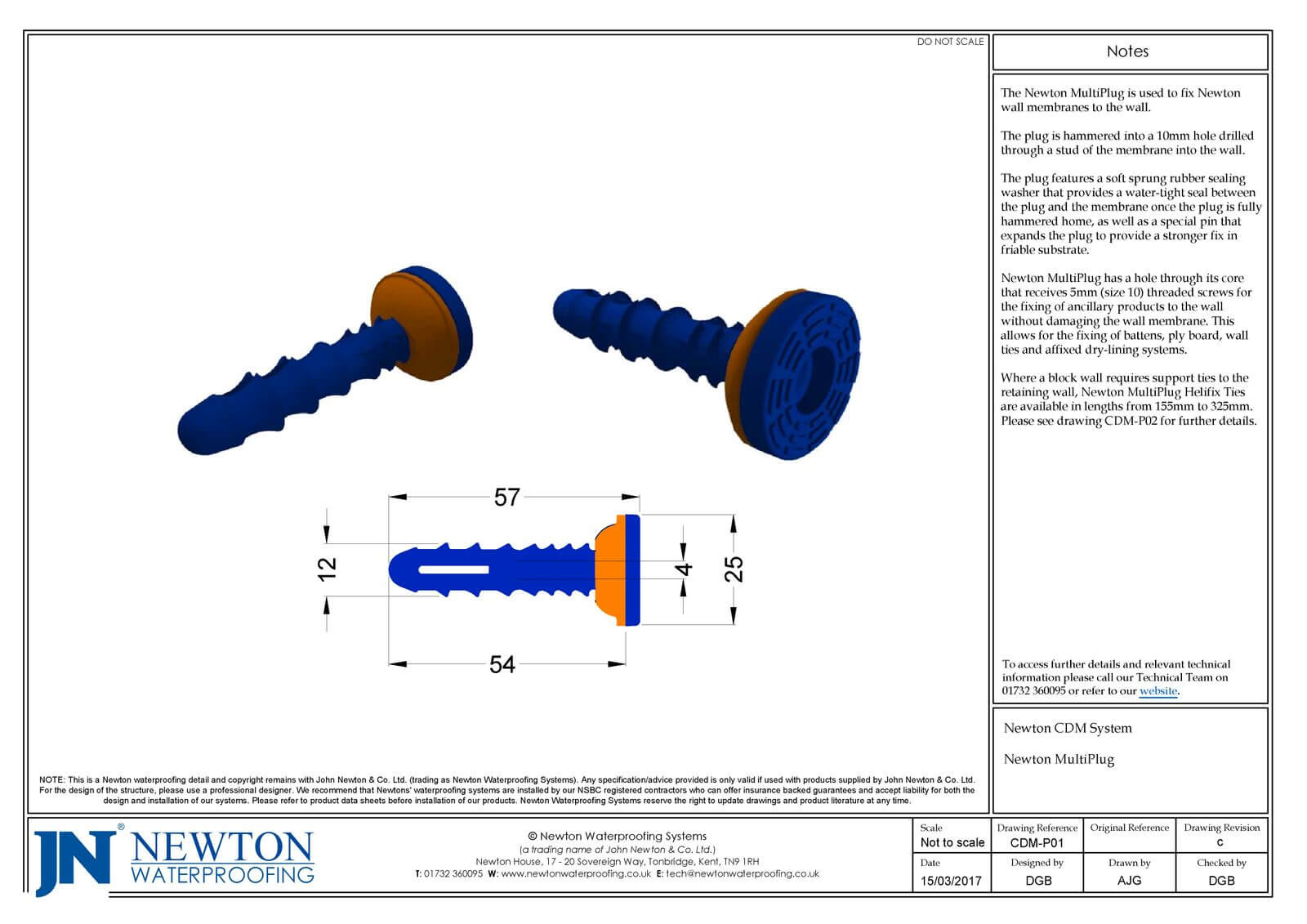

CDM-P01

Newton MultiPlug

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

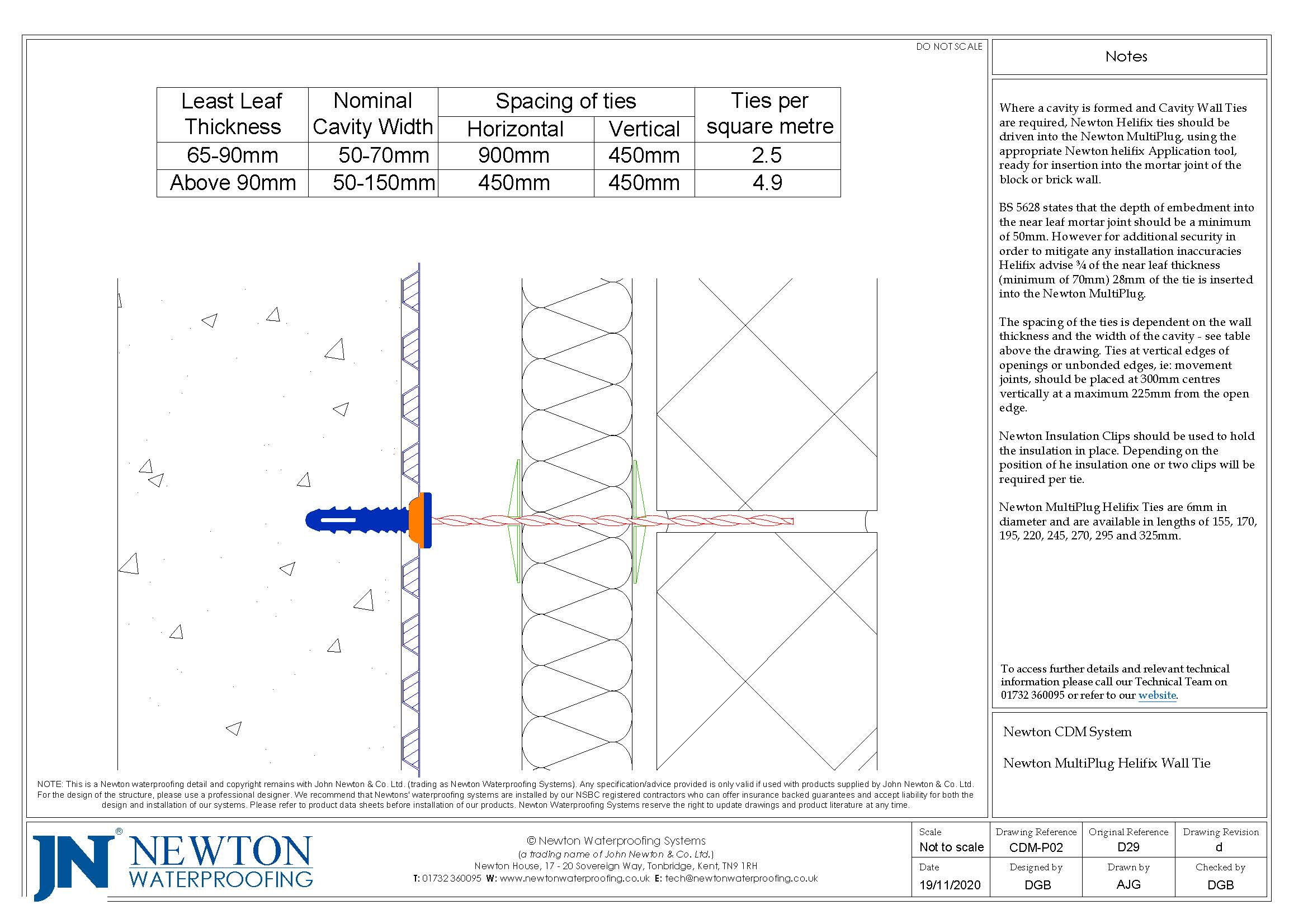

CDM-P02

Newton Helifix wall tie

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

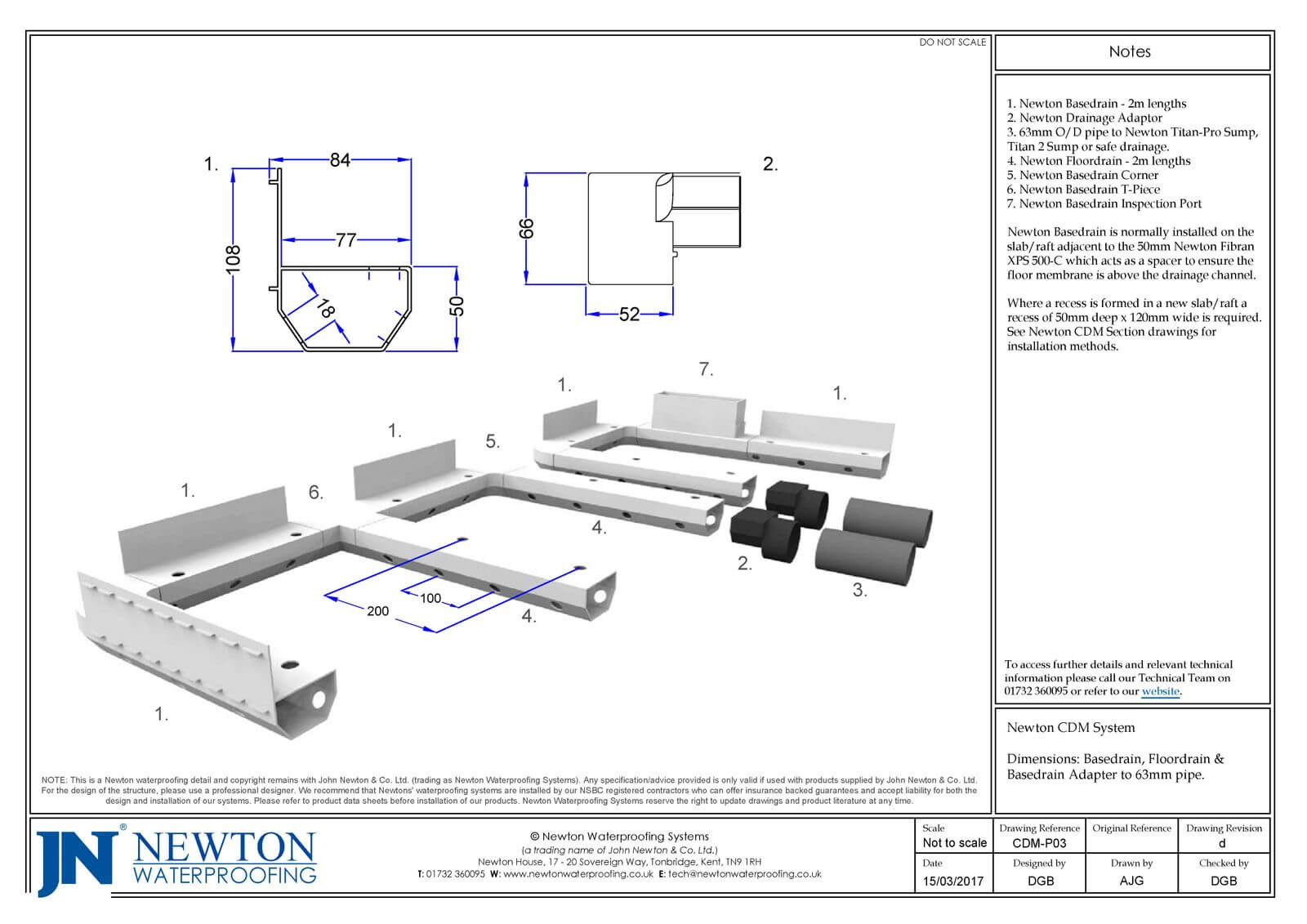

CDM-P03

Newton Basedrain layout, parts and dimensions

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

CDM-P05

Newton Basedrain layout, parts and dimensions

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

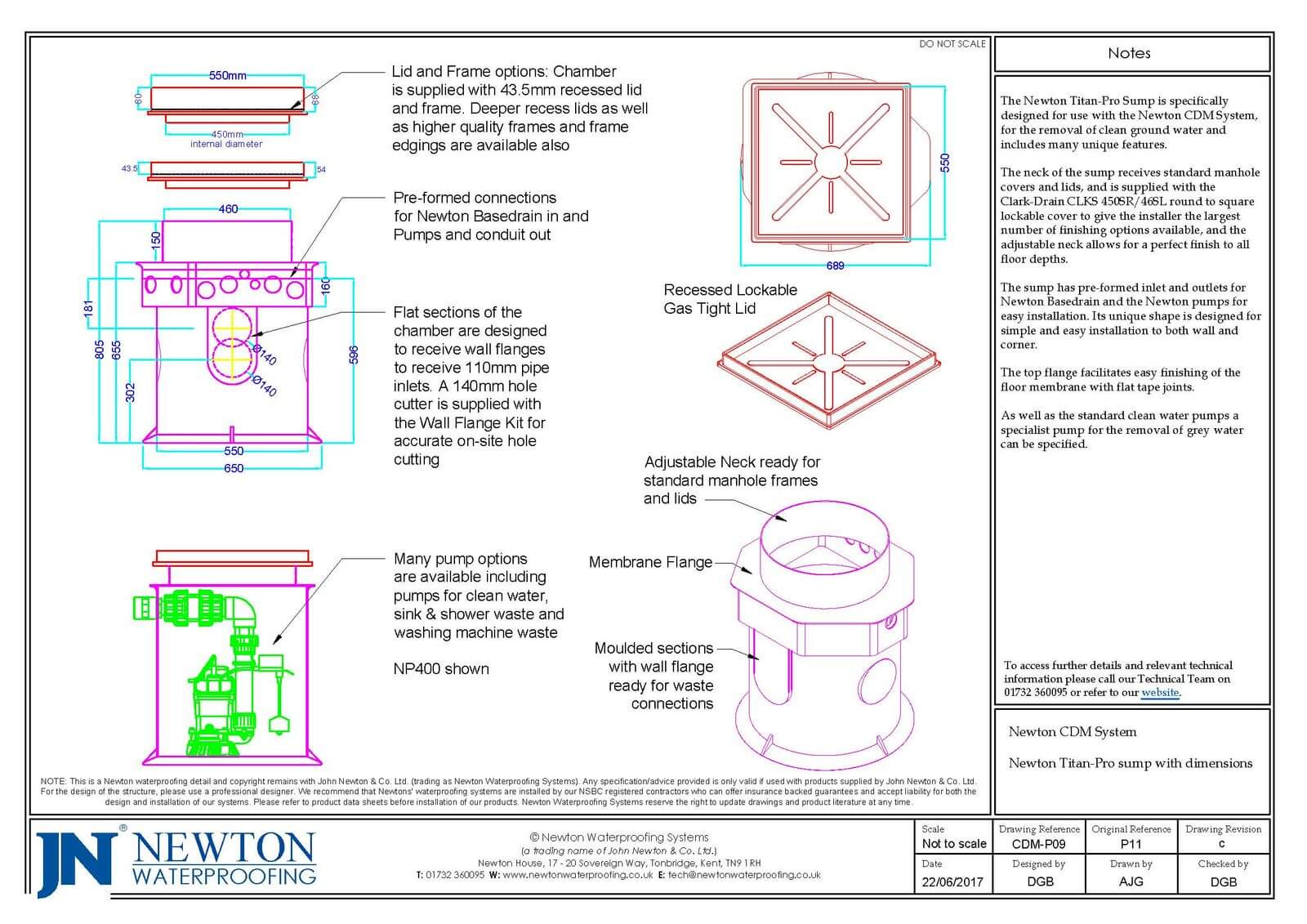

CDM-P09

Newton Titan-Pro White sump chamber

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

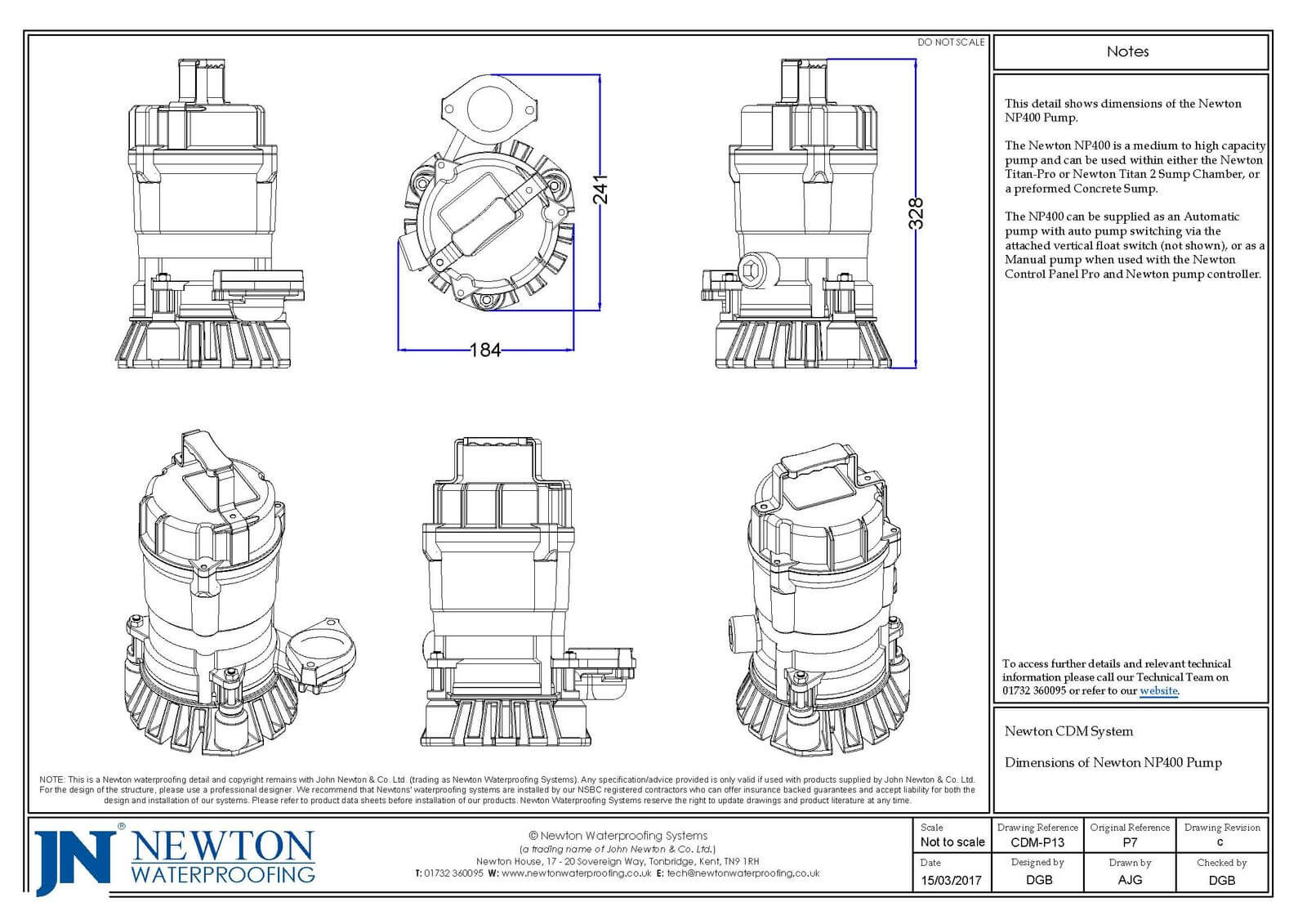

CDM-P13

Newton NP400 pump dimensions

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

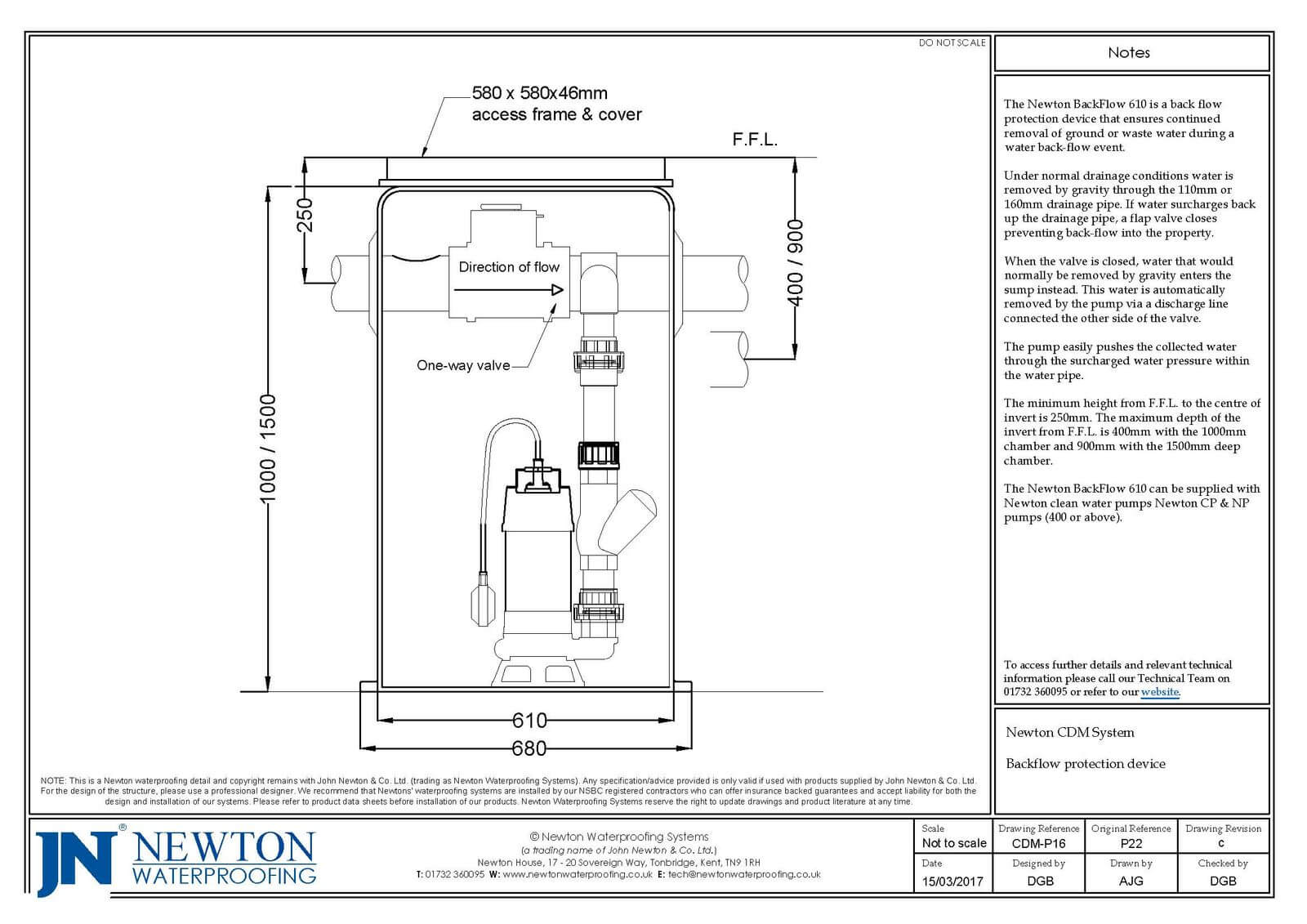

CDM-P16

Newton Backflow protection device

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

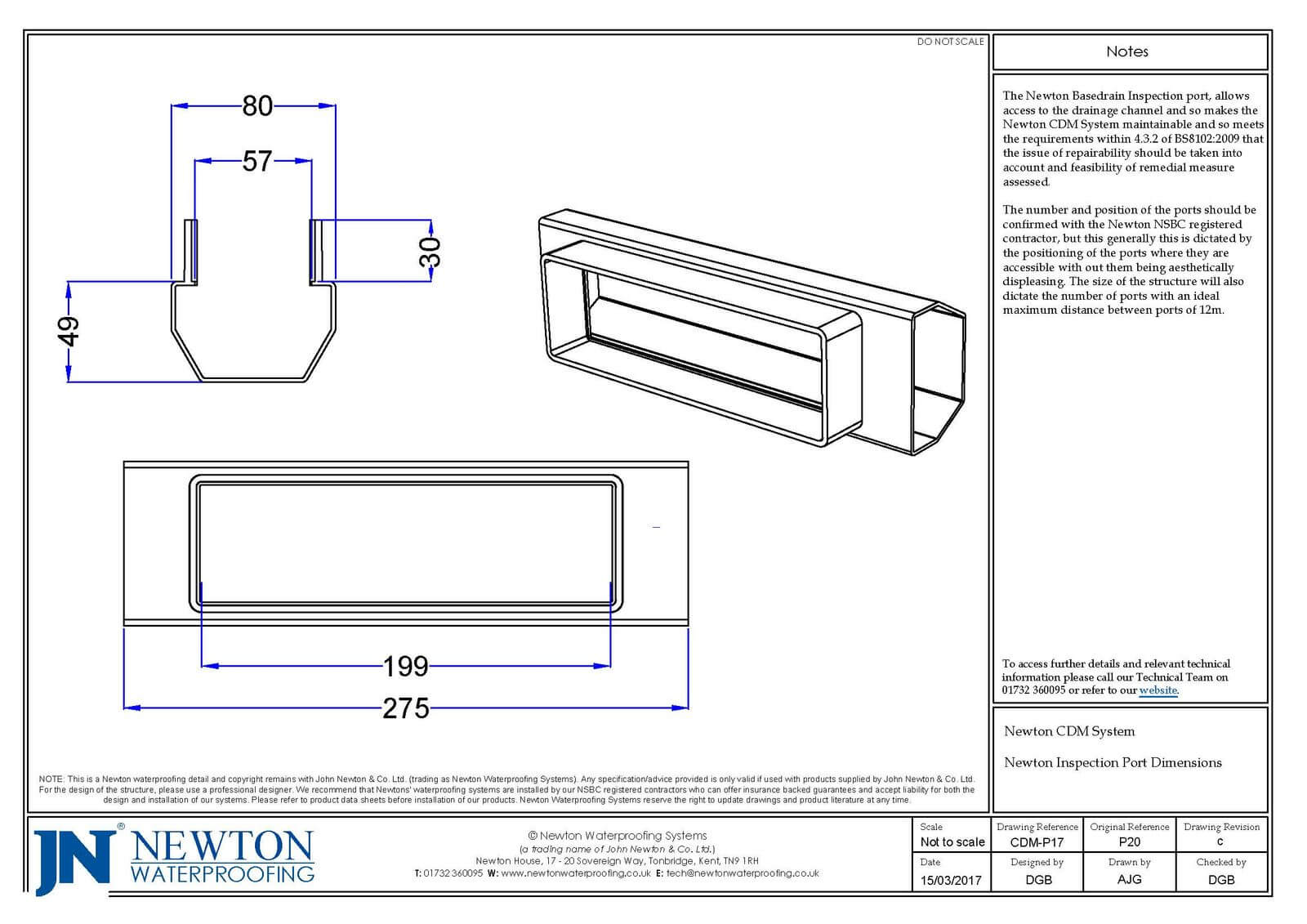

CDM-P17

Newton Inspection Port dimensions

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

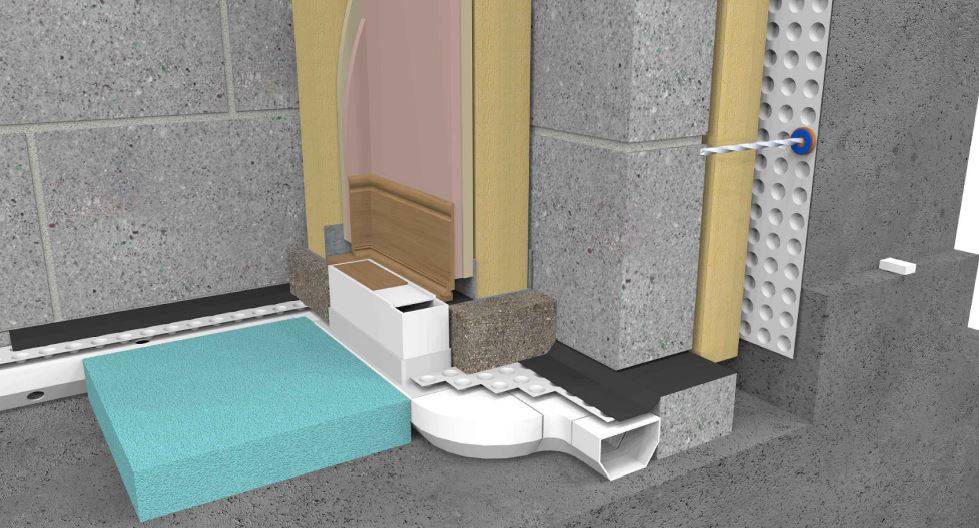

CDM-P18-3D

Newton Inspection Port

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

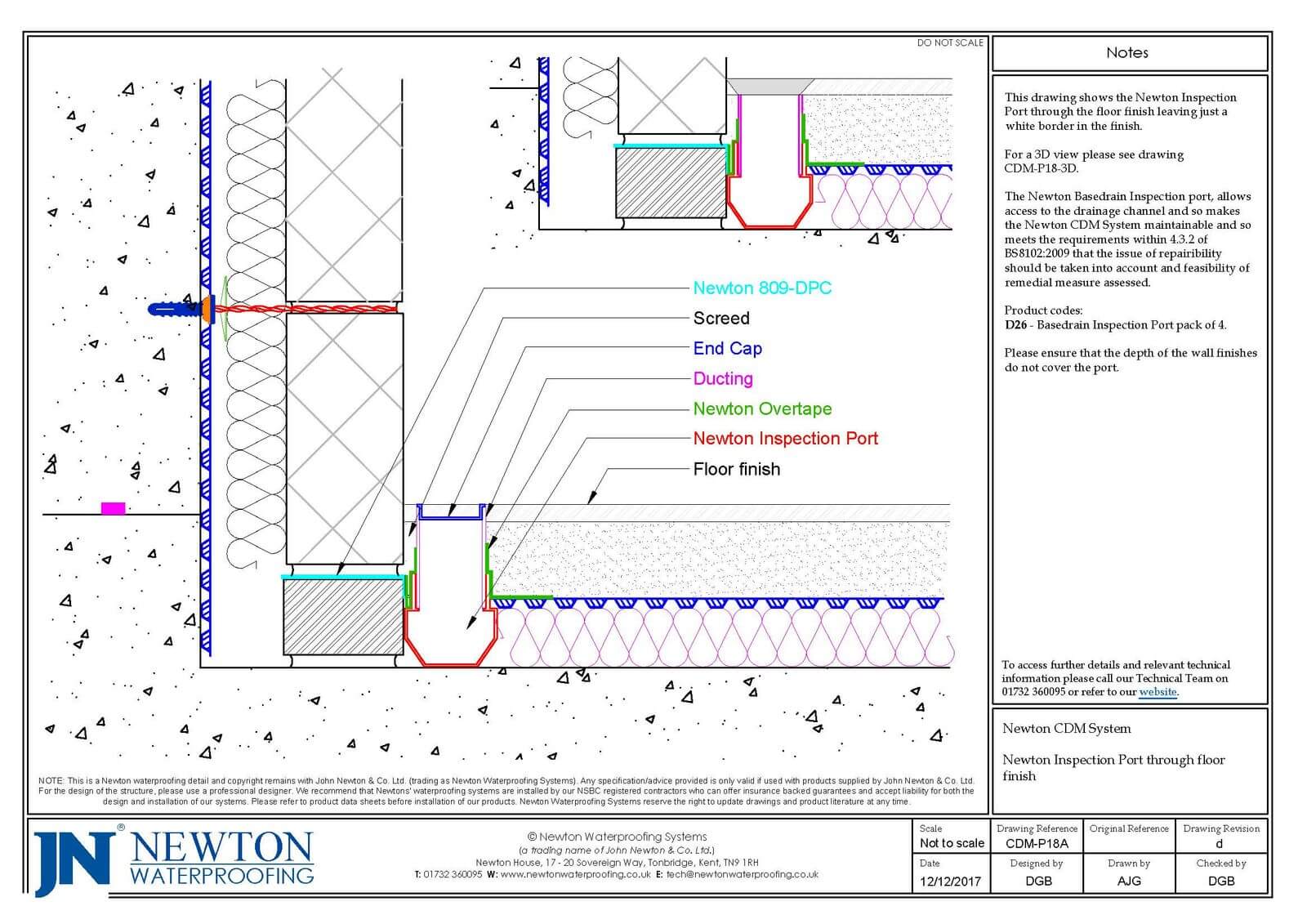

CDM-P18A

Newton Inspection Port through floor finishes

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

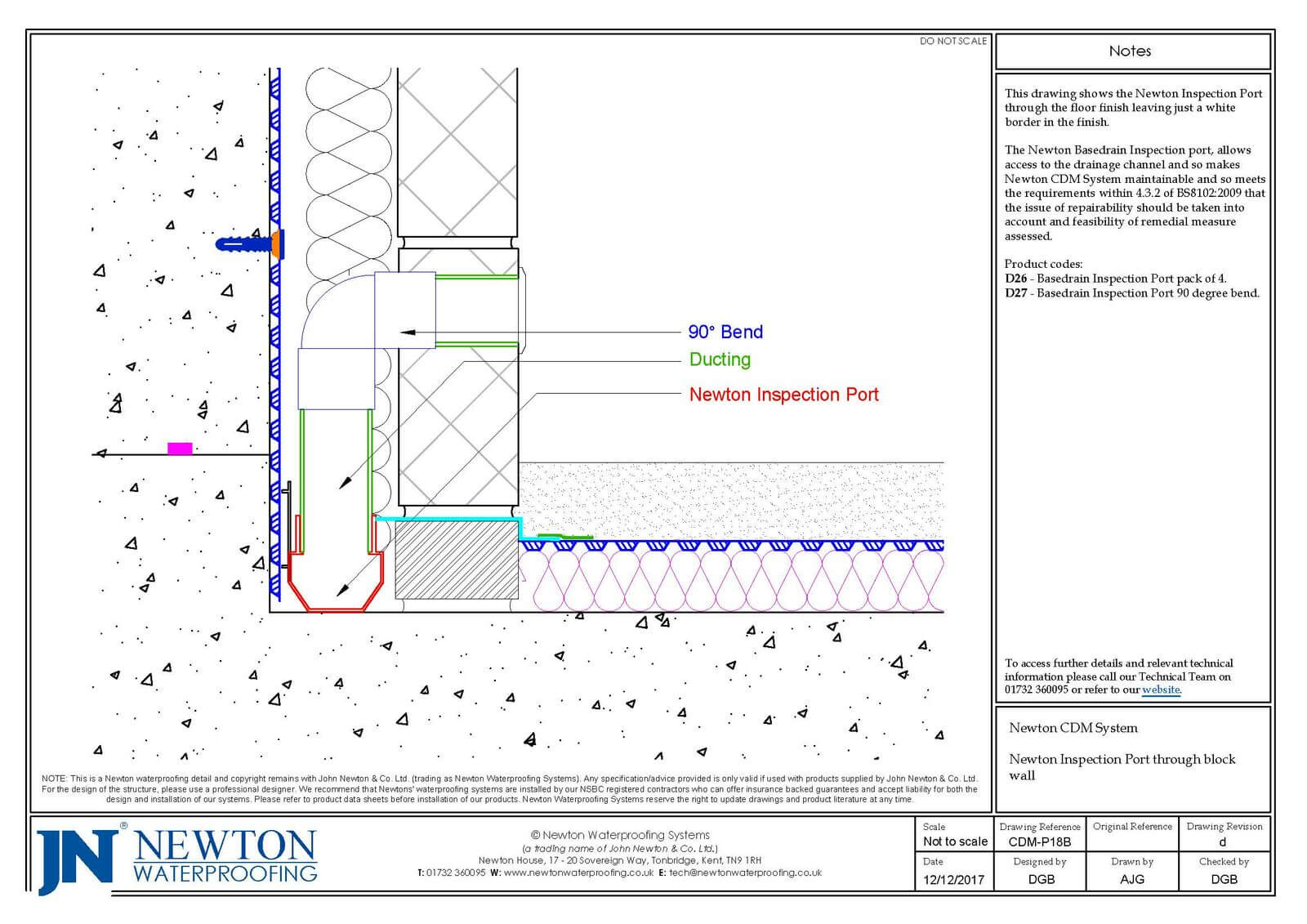

CDM-P18B

Newton Inspection Port through block wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

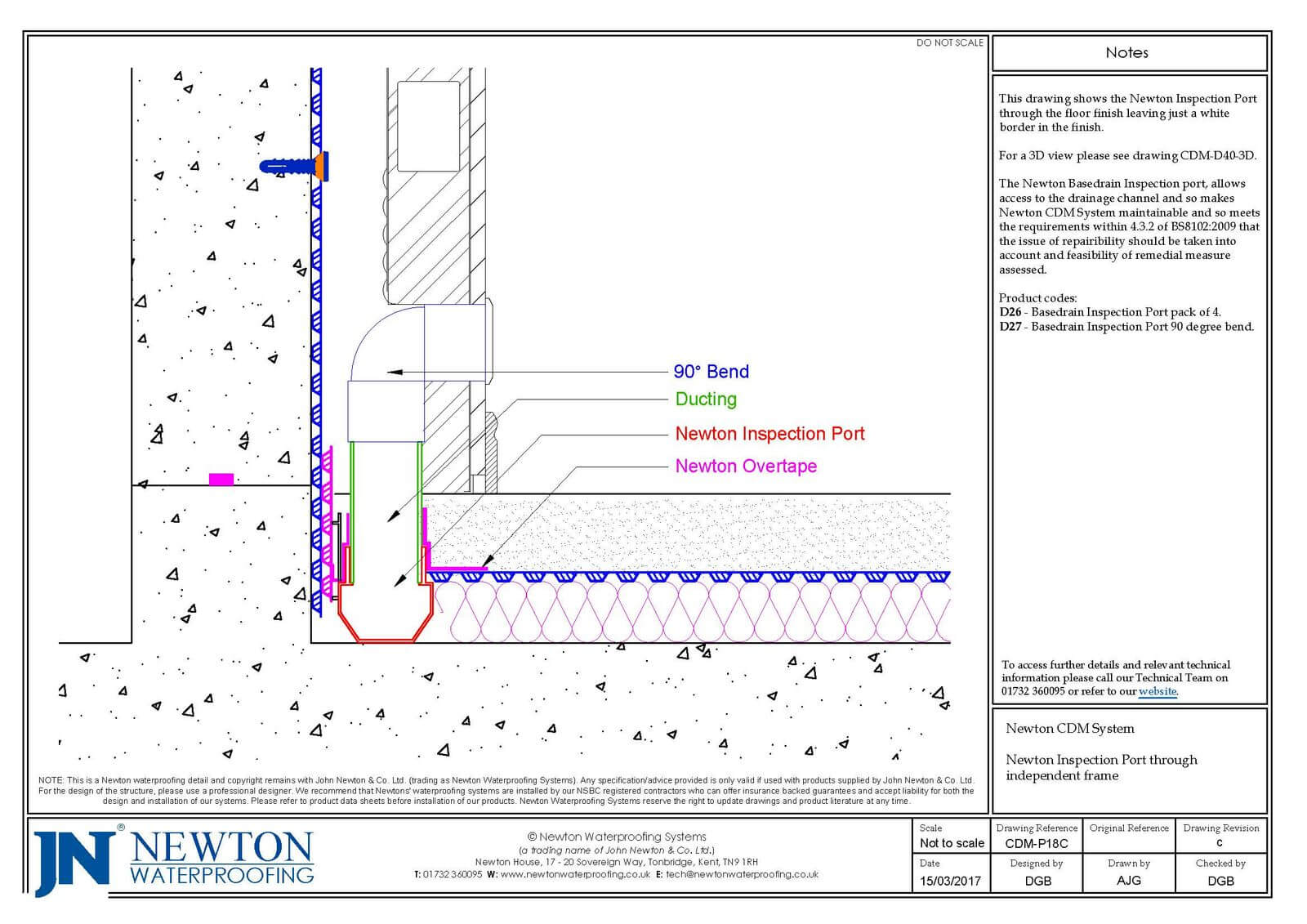

CDM-P18C

Newton Inspection Port through independent frame

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)
